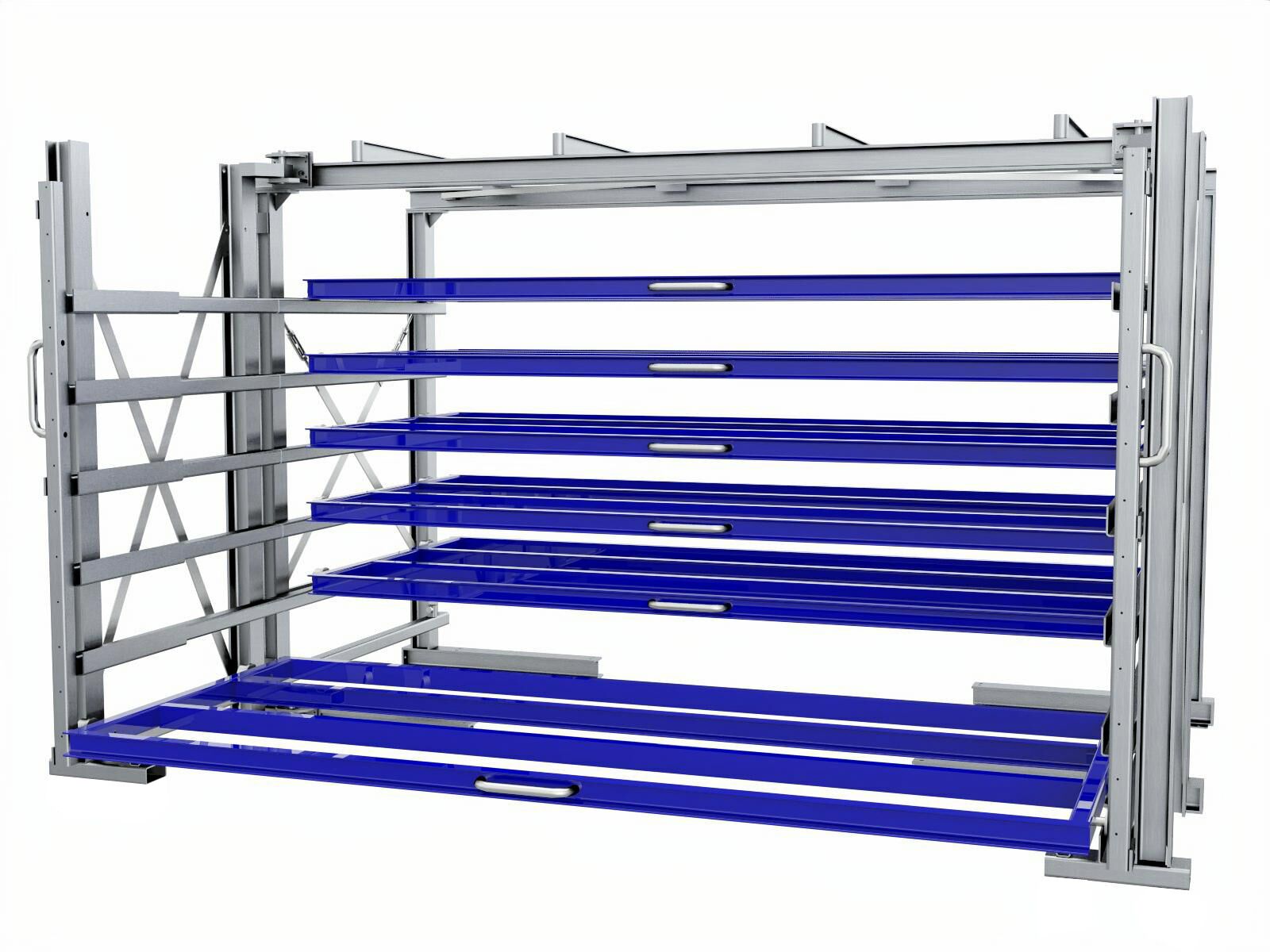

TwenTower® universal

Back to the top of the page

TwenTower® unique selling points

• Convenient parcel storage instead of tray by tray with patented PalEx depalletiser, thanks to the storemaster® Drawer deep web frame construction (invention from 1995) with anti-displacement sheet metal package embedding

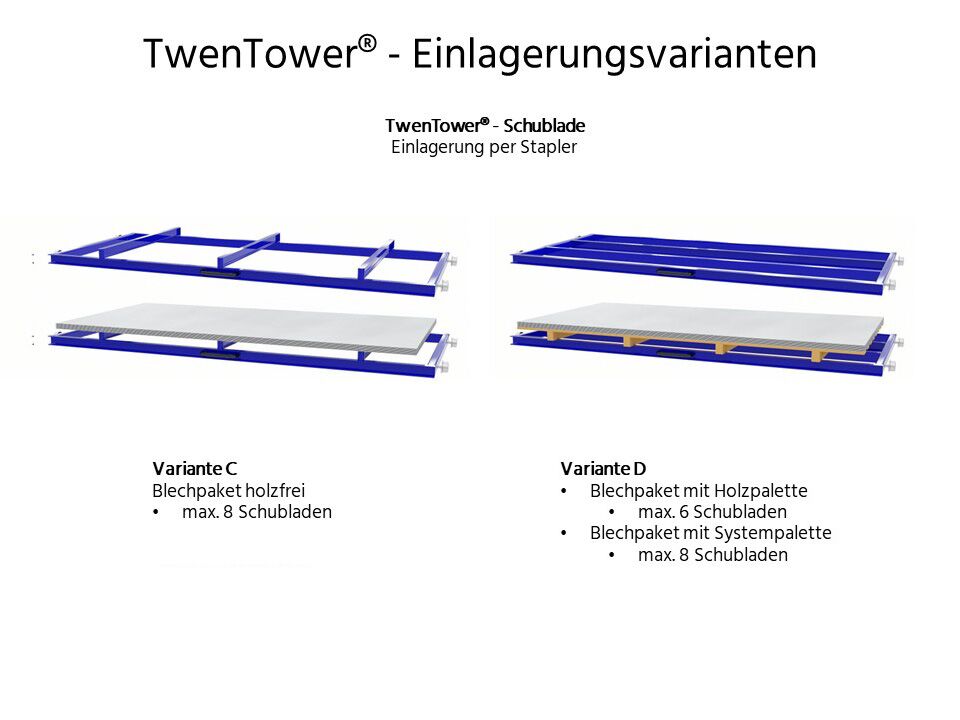

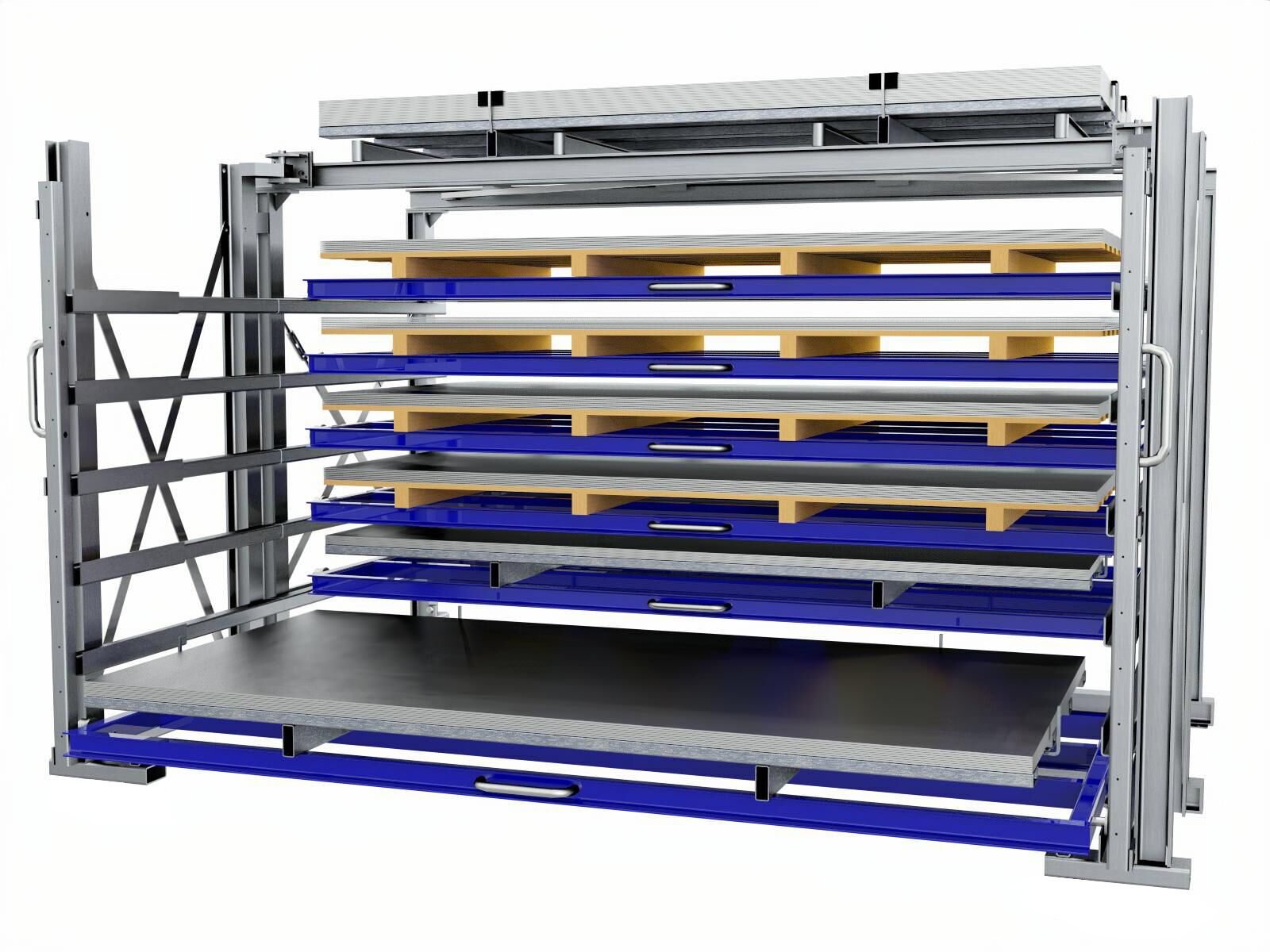

• TwenTower® heavy-duty drawer systems are suitable for all storage and putaway variants => optional change from putaway without wooden pallet to putaway incl. wooden pallet and vice versa.
• Safety devices adjust themselves automatically when the system is operated in accordance with the accident prevention regulations and are therefore not subject to arbitrary manual, i.e. negligent, actuation.

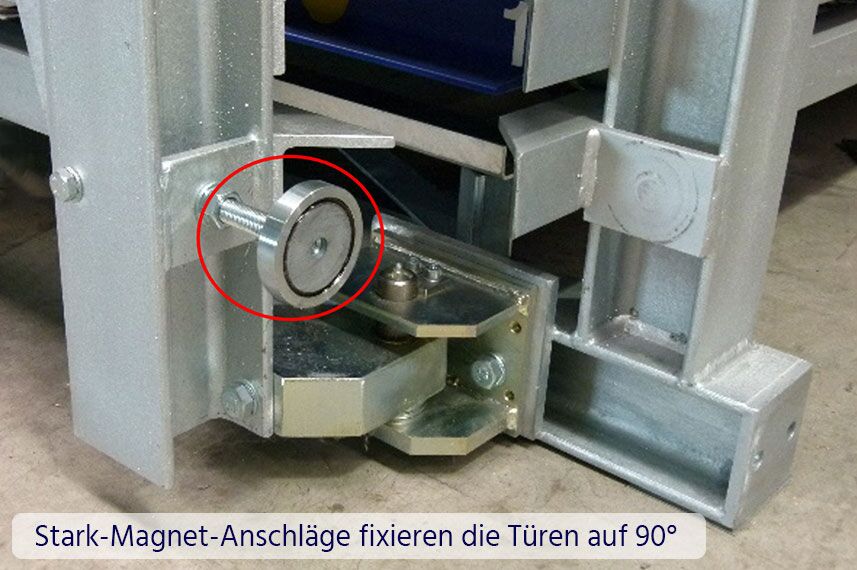

• Automatic fixing of swivelled-out roller track panels at a precise 90° (adjustable) by means of a strong magnetic holding device - in turn releases automatically when swivelled in without locking bolts etc.
• Travelling L-frame support roller elements for automatic support and tilt protection of the swivelled-out roller runner walls after the drawer load has been absorbed without manual floor locking - supports safety against drawer falls

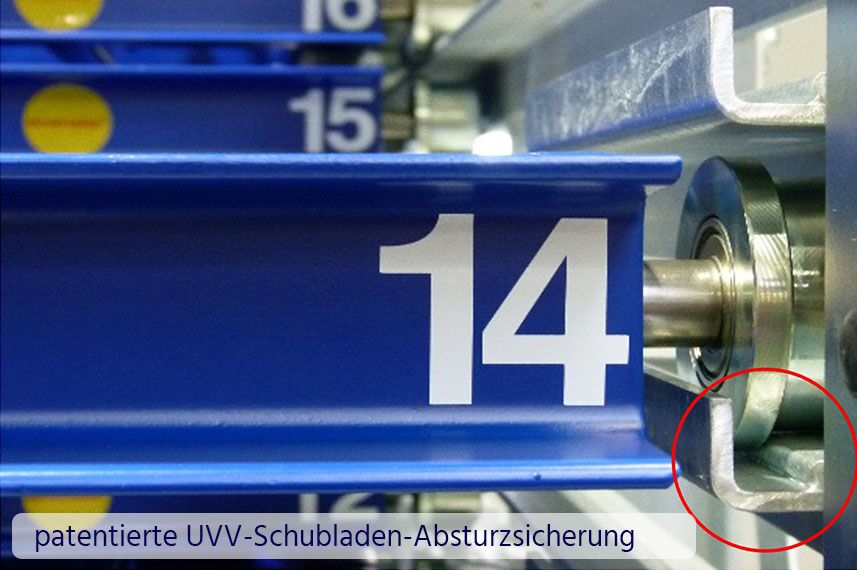

• 100% drawer anti-drop device with automatic flange-groove forced guidance patent (DBGM) without arbitrary (negligible) mechanical actuation by the operator
• Automatic self-releasing locking devices secure the rest and working position against unintentional movement of the drawers without manual operation mech. locks
• Runners without dirt pockets made of permanently dimensionally stable solid steel (no edge plate), abrasion-resistant hot-dip galvanised, running surfaces ground, welded to the upright (not bolted) for a permanently step-free runner transition between block and swivel runner area and the only perfect drawer safety catch with automatic function in accordance with UVV (accident prevention regulations)

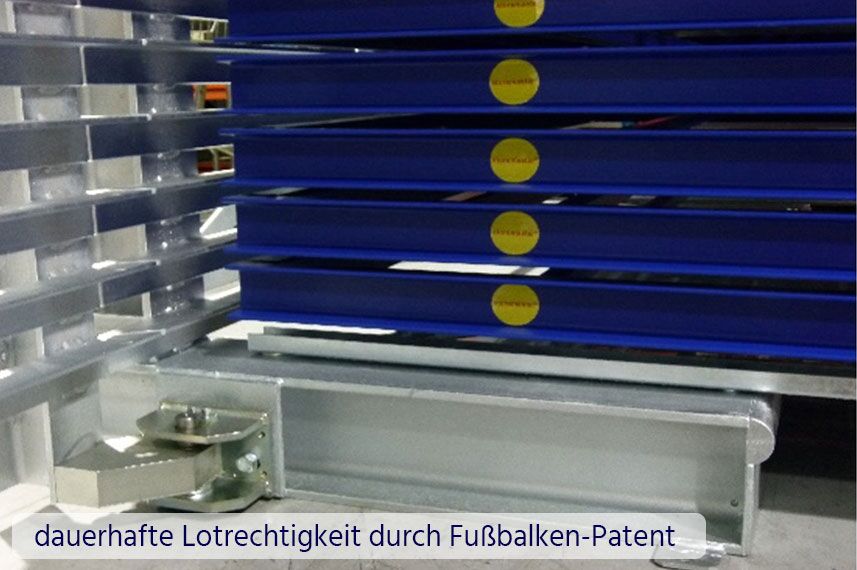

• The moulded steel patent upright system in torsion-resistant L-frame construction (DBGM) - no portal! - with welded foot beam load distributors (storemaster® trademark) alone ensures the permanent perpendicularity of the stud frame columns as a guarantee for unlimited, unrestricted functionality of the system without diagonal cross bay bracing, which is the only way to verify the structural stability of the single and double-sided design without bay bracing.

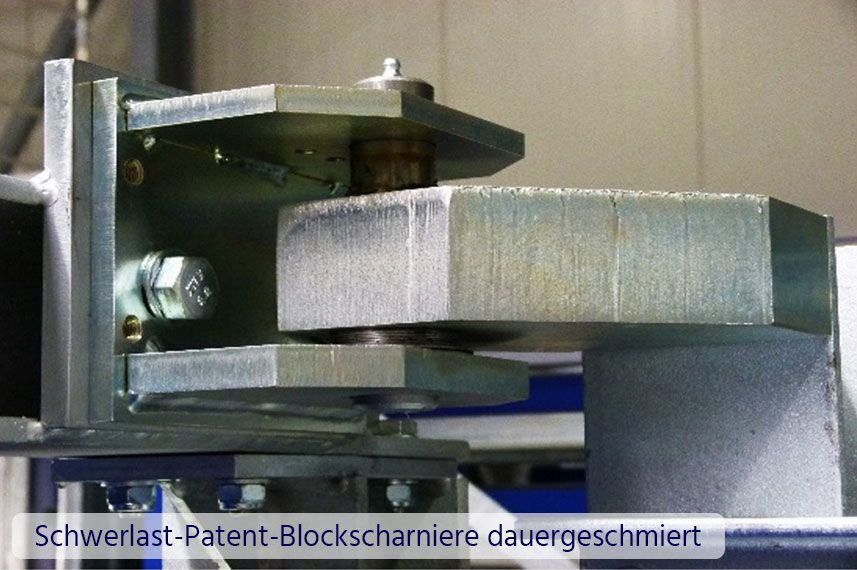

• High load-bearing, permanently lubricated heavy-duty block hinges for permanent fixing of the swing-out panels in their height position

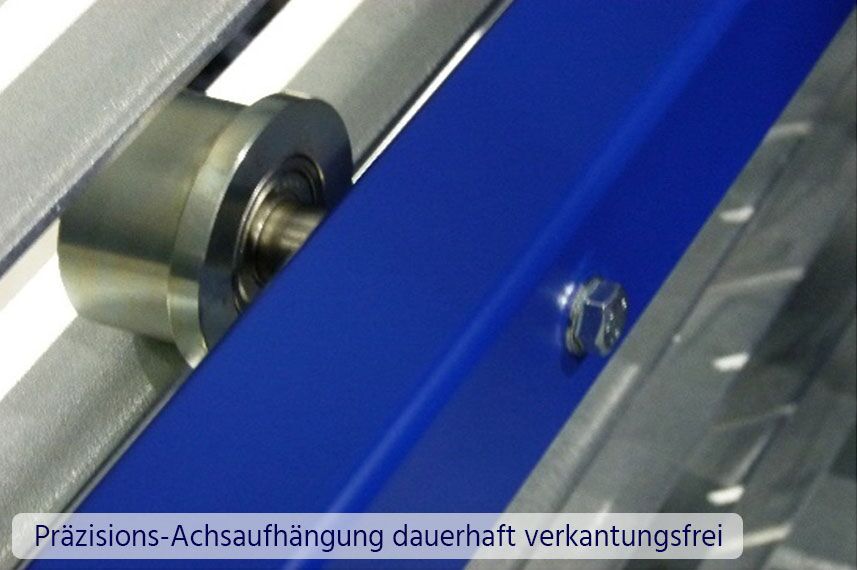

• Precision twin wheel axle suspension for permanently tilt-free running comfort
• Mitre cut between the rail joints for a seamless, smooth roller transition
• Particularly low pull-out force for high drawer loads without aids (crank, etc.)
• Push spring servo patent makes it easier to pull out the heavy-duty drawers
• Drawers can be removed individually from the system to change the usable height
• Heavy-duty solid steel flanged castors, ground running surfaces, chromatised with double ball bearings
• Storage density with up to 25 drawers at a pull-out height of approx. 2 m
• Combinable sheet and rod material storage with plug-in compartmentalisation
• Drawer pull-out > 100 %
• UVV-approved push-through safety device with double-sided design and 13 drawers with a load capacity of 3 tonnes each at a pull-out height of approx. 2 m (manual incorrect operation excluded)

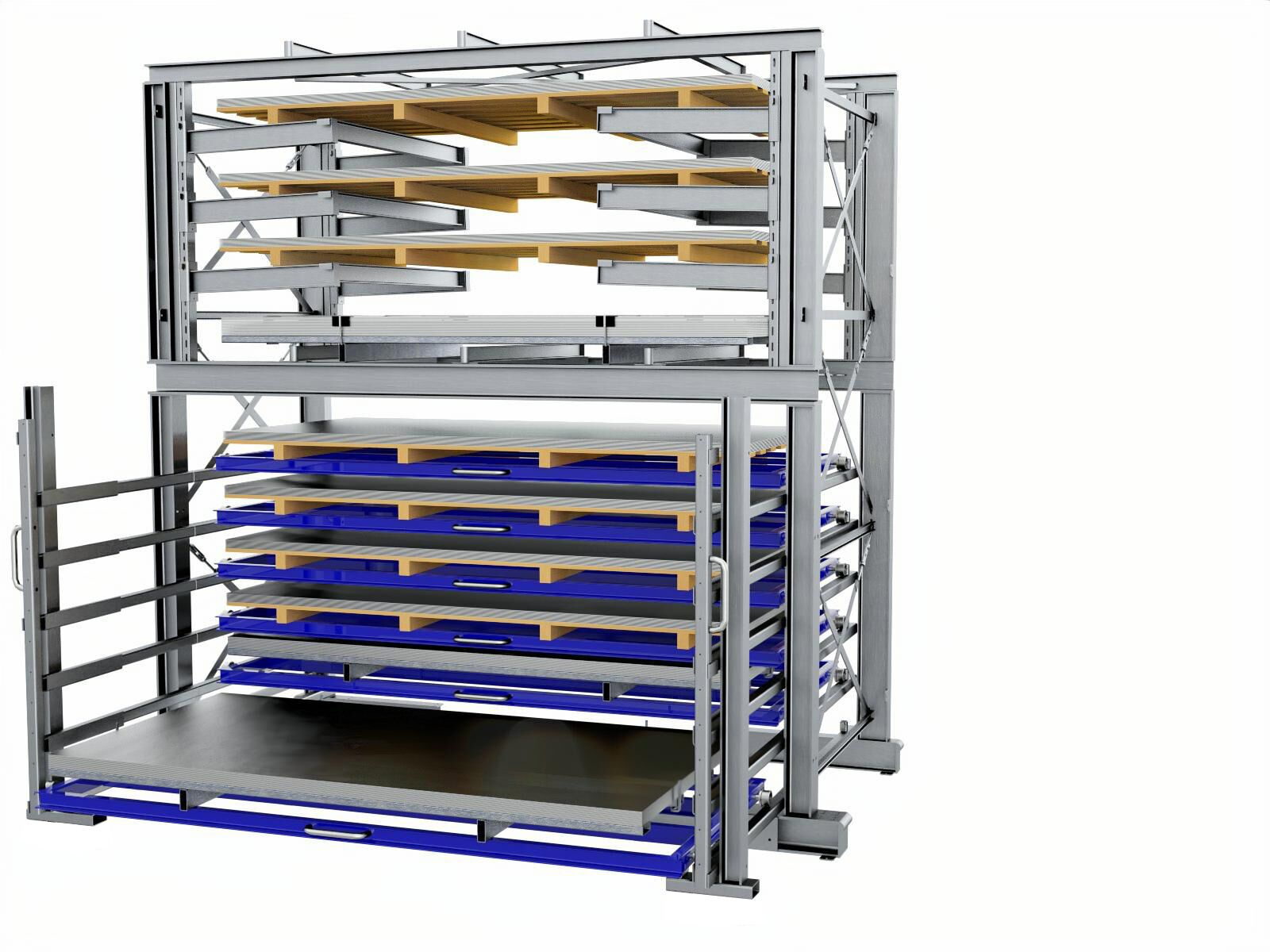

• OverheadTop attachment block can be retrofitted without the need for subsequent customisation
• OverheadTop attachment block with cantilever bearing levels for easier insertion of the forklift fork, height-adjustable in 75 mm increments, can be operated from both sides - optional for cassette storage
• Electrification up to 10 tonnes / pull-out storage level - max. 13 drawers (storemaster® patent)
• System with swivelling roller runner pull-out panels, block-mounted ready for use
• Operational and functional safety in accordance with the guidelines of the RAL-RG 614 quality association
• 20-year functional guarantee
