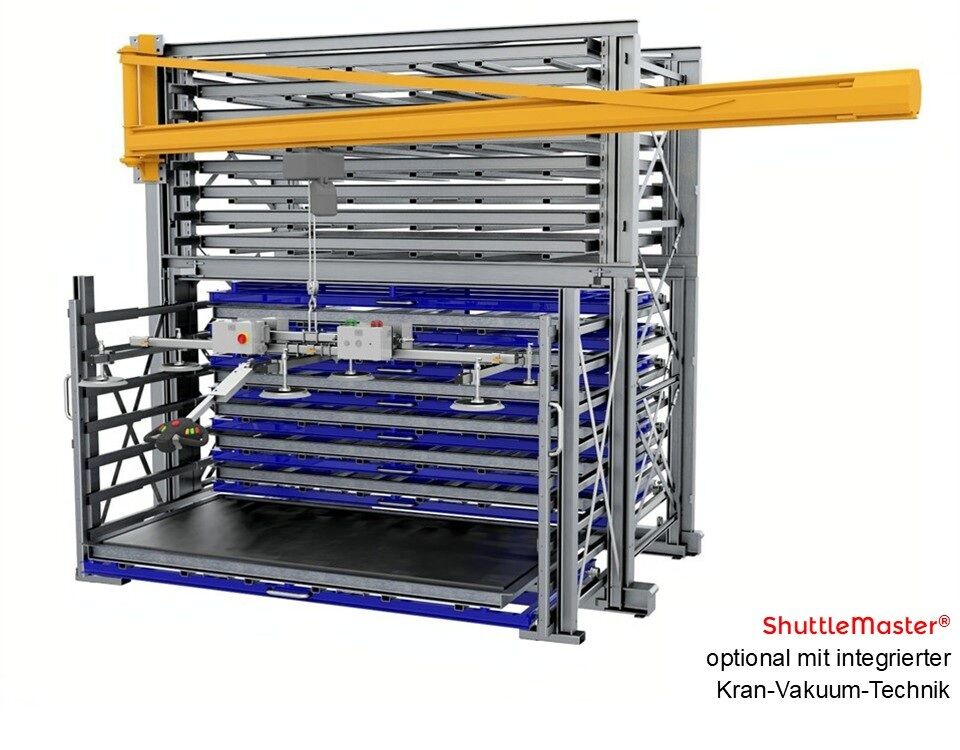

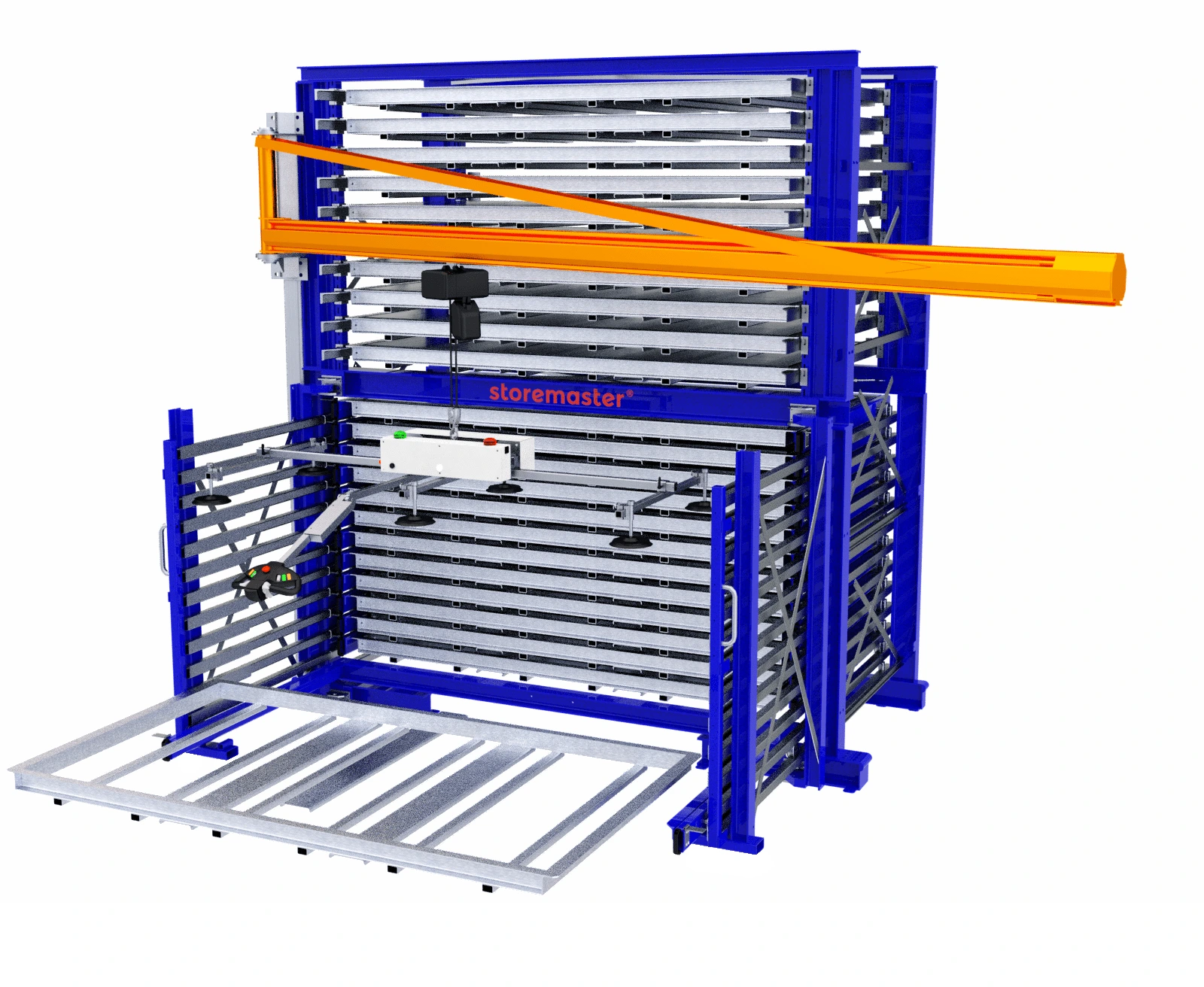

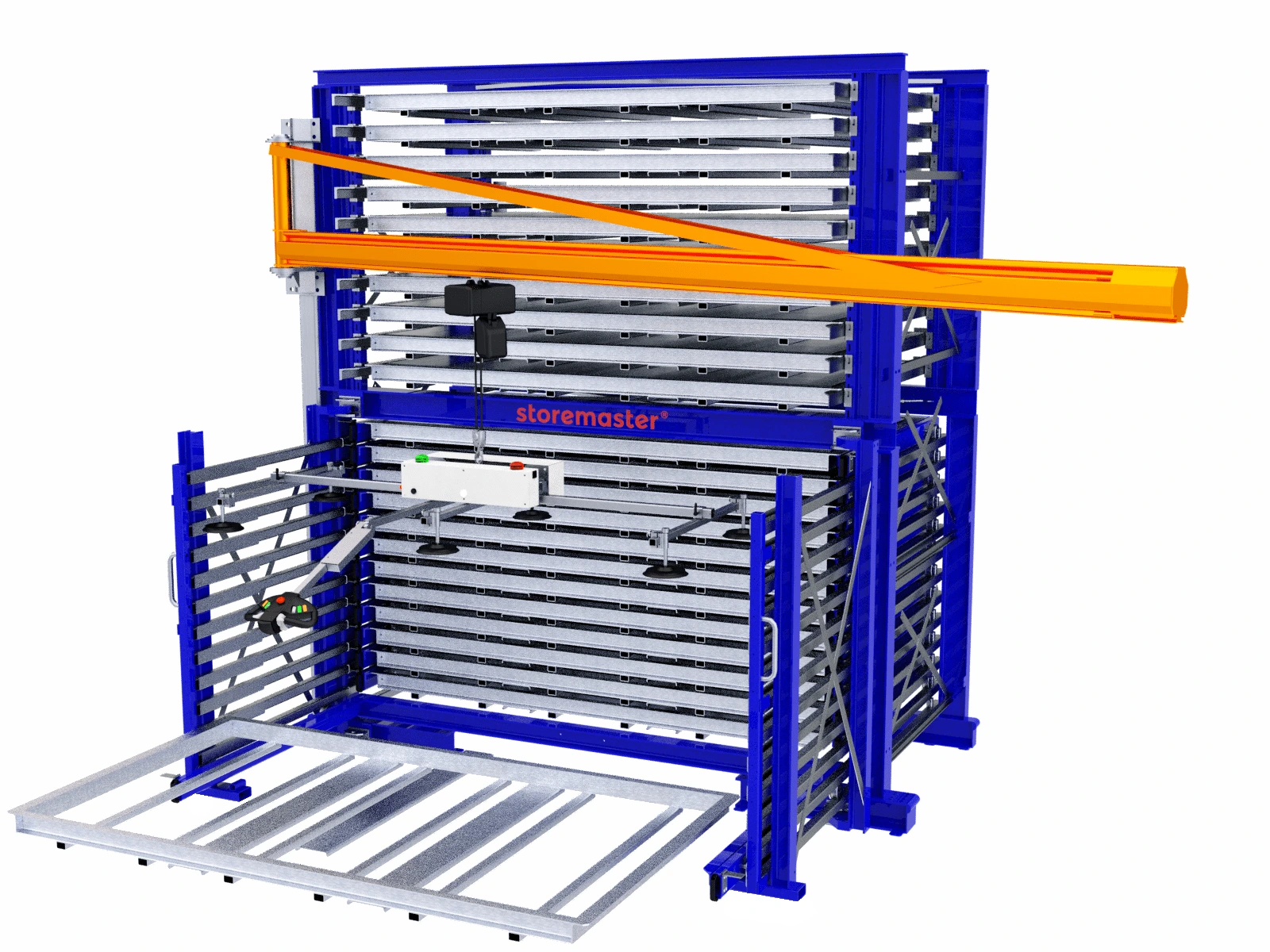

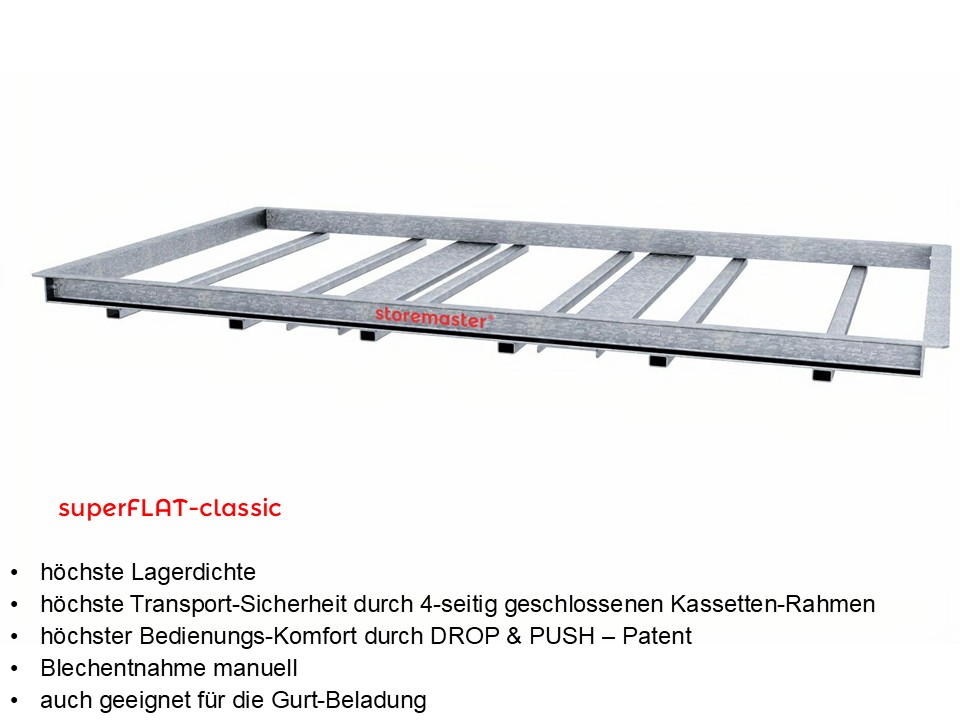

ShuttleMaster® cassette changing system

MasterTower® unique selling points

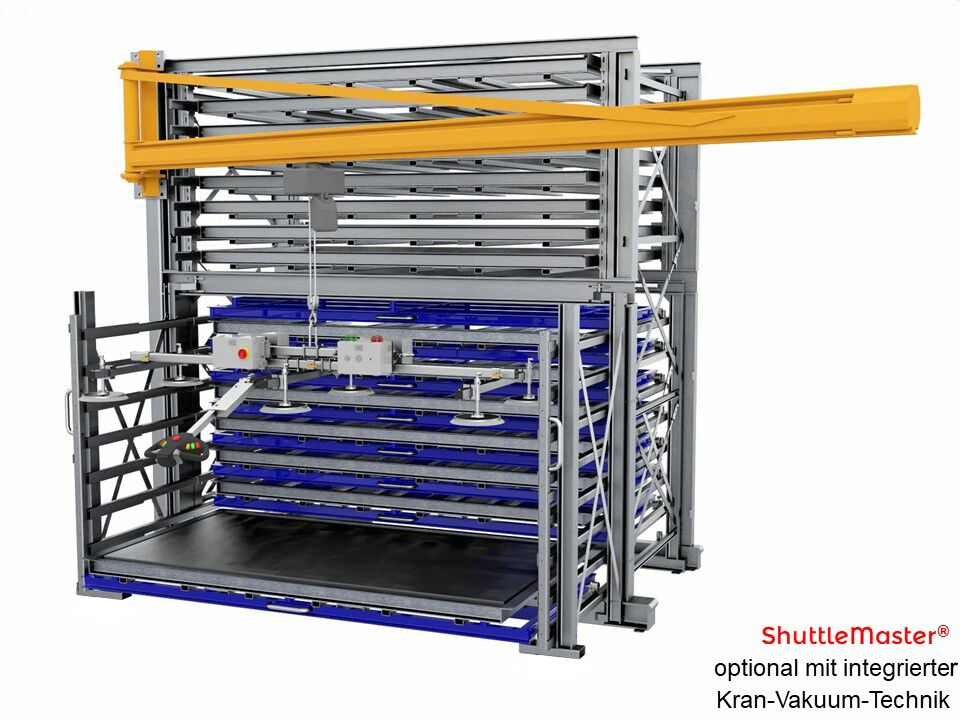

• TwenTower®-Extension to the MasterTower® by means of statically secured professional steel construction with integrated crane column without auxiliary support - crane acceptance by expert in accordance with DGUV rule
  108-007 and DIN EN 15635 - Crane connection can be moved alternately.
• Convenient parcel storage instead of tray by tray with patented PalEx depalletiser, thanks to the storemaster® Drawer deep web frame construction (invented in 1995) with anti-displacement sheet metal package embedding.
• MasterTower® heavy-duty drawer systems are suitable for all storage and putaway variants => optional change from putaway without wooden pallet to putaway incl. wooden pallet and vice versa.
• Safety devices adjust themselves automatically when the system is operated in accordance with the accident prevention regulations and are therefore not subject to arbitrary manual, i.e. negligent, actuation.

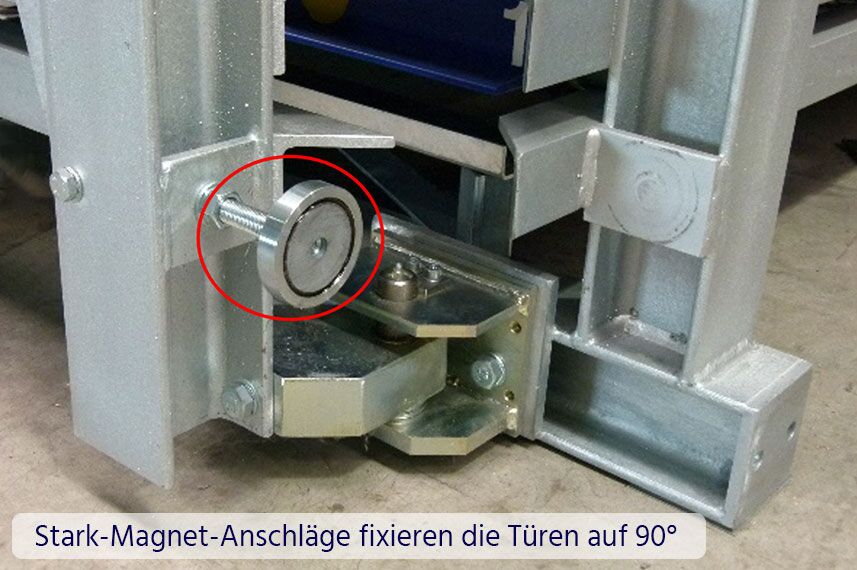

• Automatic fixing of swivelled-out roller track panels at a precise 90° (adjustable) by means of a strong magnetic holding device - in turn releases automatically when swivelled in without locking bolts etc.
• The storemaster®The pull-out technology allows installation and operation on any type of floor, as well as sloping and/or uneven installation surfaces with a gradient without a foundation plate. The swivelling pull-out rail walls (doors) have no contact with the floor; floors with heating and sensitive coatings remain undamaged.

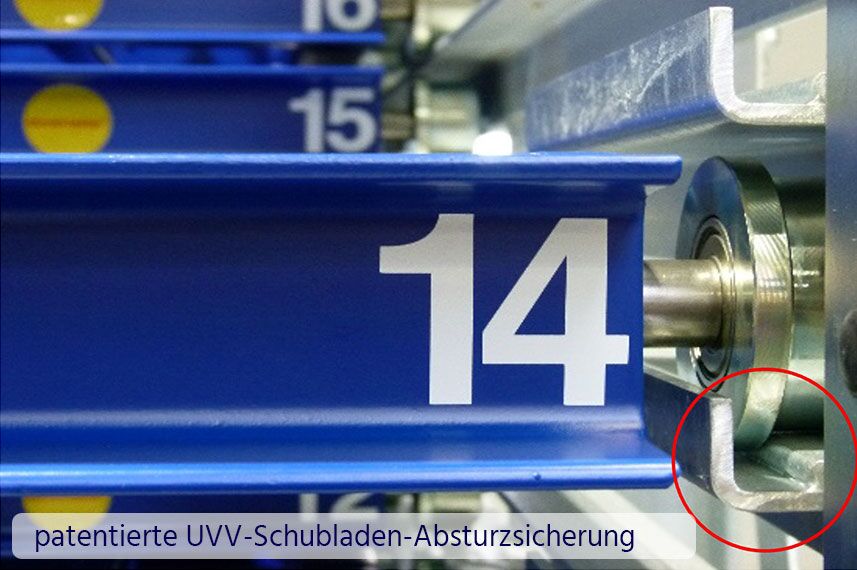

• 100% UVV drawer anti-drop device with automatic flange-groove forced guidance patent (DBGM) without arbitrary (negligible) mechanical actuation by the operator.
• Automatic self-releasing locking devices secure the rest and working position against unintentional movement of the drawers without manual operation of mechanical locks.
• Running rails without dirt pockets made of permanently dimensionally stable solid steel (no edge plate), abrasion-resistant hot-dip galvanised, running surfaces ground, welded to the upright (not bolted) for a permanently offset-free rail transition between block and swivel rail area thanks to mitre transition.

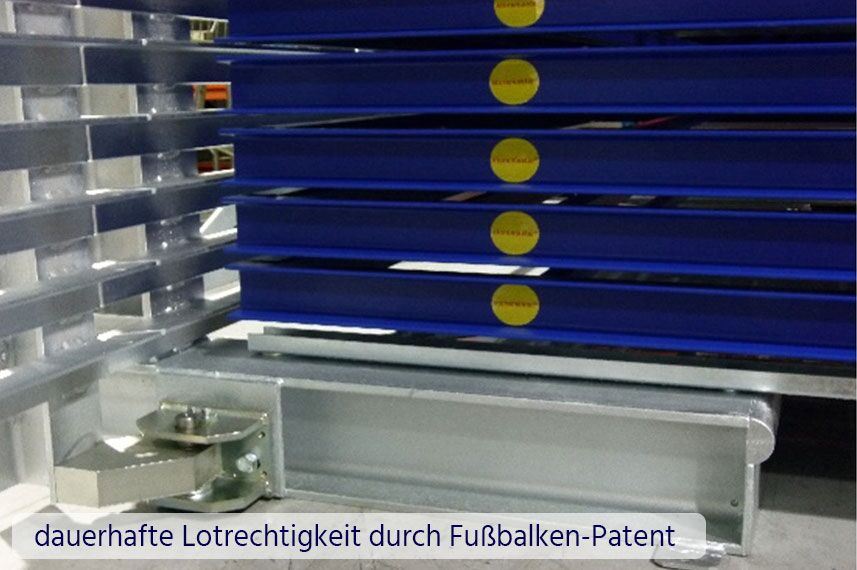

• The moulded steel patent upright system in torsion-resistant L-frame construction (DBGM) - no portal! - with welded foot beam load distributors (storemaster® trademark) alone ensures the permanent perpendicularity of the stud frame columns as a guarantee for unlimited, unrestricted functionality of the system without diagonal cross bay bracing, which is the only way to verify the structural stability of the single and double-sided design without bay bracing.

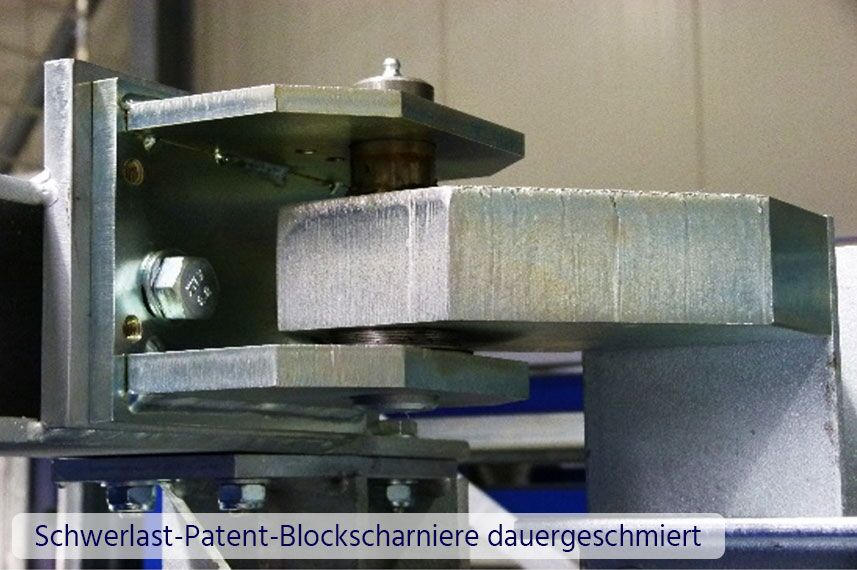

• High load-bearing, permanently lubricated heavy-duty block hinges for permanent fixing of the swing-out walls in their height position.

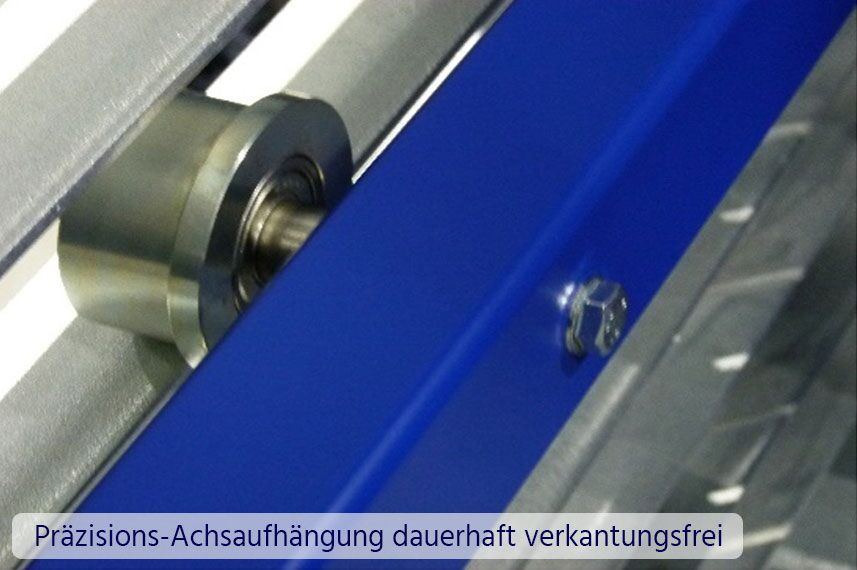

• Precision twin wheel axle suspension for permanently tilt-free running comfort.

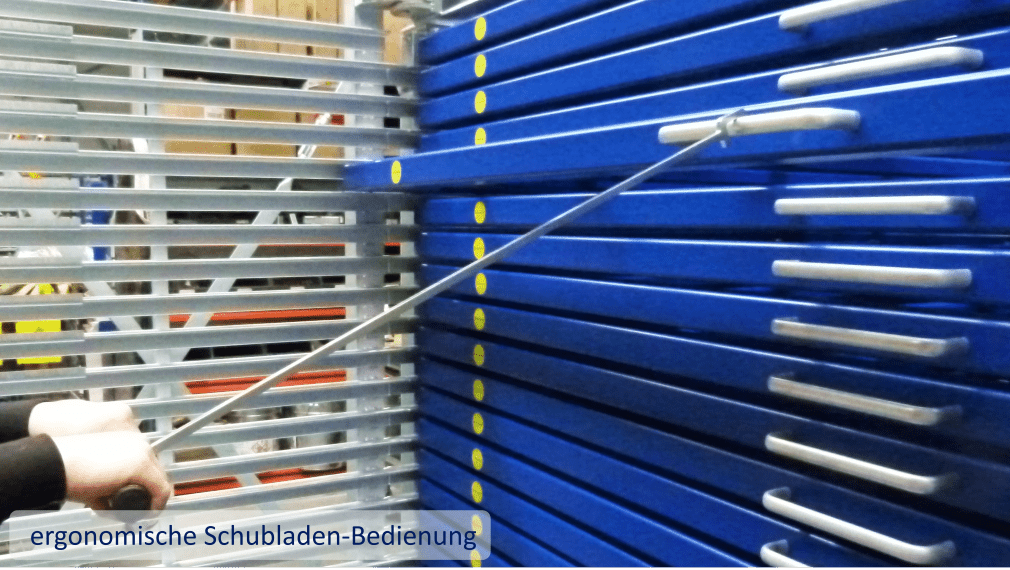

• Particularly low pull-out force for high drawer loads without aids (crank, etc.).
• The spring-loaded servo patent makes it easier to pull out the heavy-duty drawers.
• Drawers can be easily removed individually from the system to change the usable height.
• Heavy-duty solid steel flanged castors, chromatised with double ball bearings.
• Storage density with up to 25 drawers at a pull-out height of approx. 2 metres.
• Combinable sheet and rod material storage with plug-in compartmentalisation.
• Drawer pull-out > 100 %.
• UVV-protected push-through safety device for double-sided sheet removal.
• OverheadTop attachment block can be retrofitted without the need for subsequent customisation.
• OverheadTop attachment block with cantilever bearing levels for easier insertion of the forklift fork, height-adjustable in 75 mm increments, can be operated from both sides - optional for cassette storage.
• Electrification up to 10 tonnes / pull-out storage level - max. 13 drawers (storemaster® patent).
• System with swivelling roller runner pull-out panels, block-mounted ready for use.
• Operational and functional safety in accordance with the guidelines of the RAL-RG 614 quality association.
• 20-year functional guarantee.
