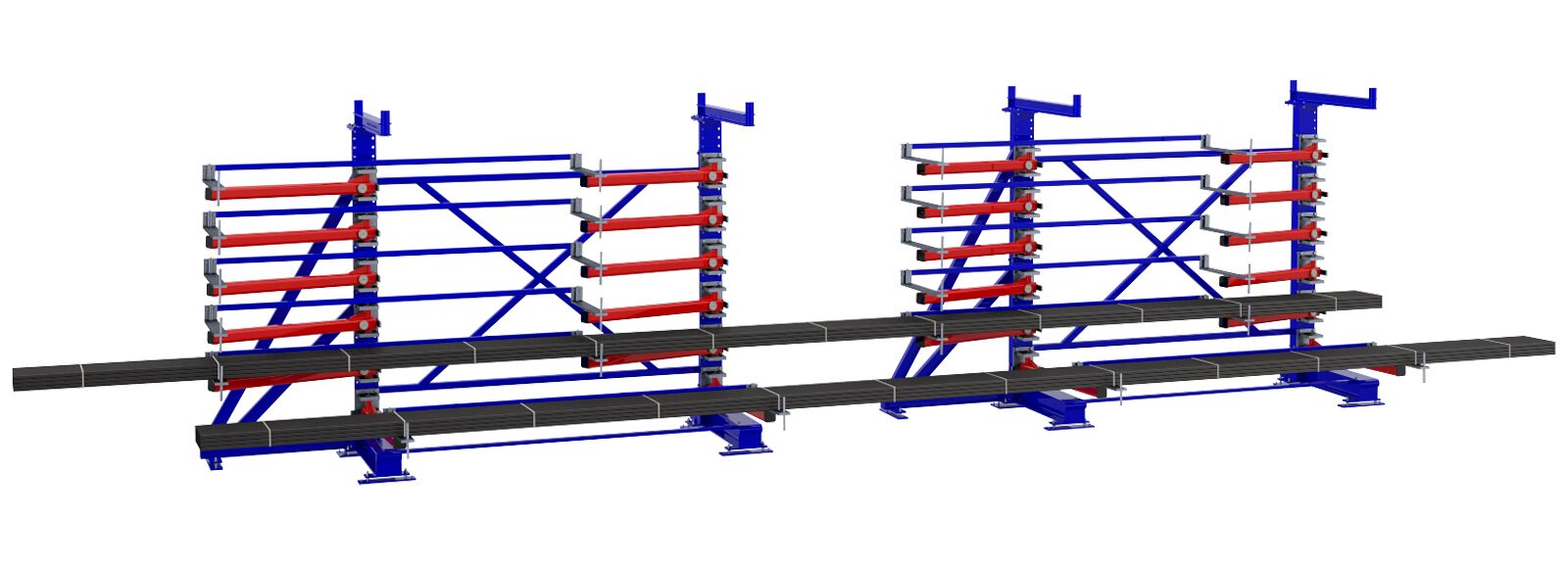

ArmStrong® swingout

Heavy-duty long goods storage for crane operation
20 years warranty

from 13.479,00€

excl. VAT

Storage levels can be conveniently swivelled out in seconds from a standing position
Storage lengths from 2 to 18 m

Delivery: Free delivery within Germany, block-mounted ready for operation

... more product details

ArmStrong® swingout – Einlagerungskomfort

Effortless loading of individual shelf levels with long goods by swivelling out the required level in seconds.



Optional system components

Please select from the options provided. The system price will be adjusted automatically.

Plug-in bolts for shelf supports and material tray inserts Ø 20 mm for subdividing the shelf depth in 75 mm increments.

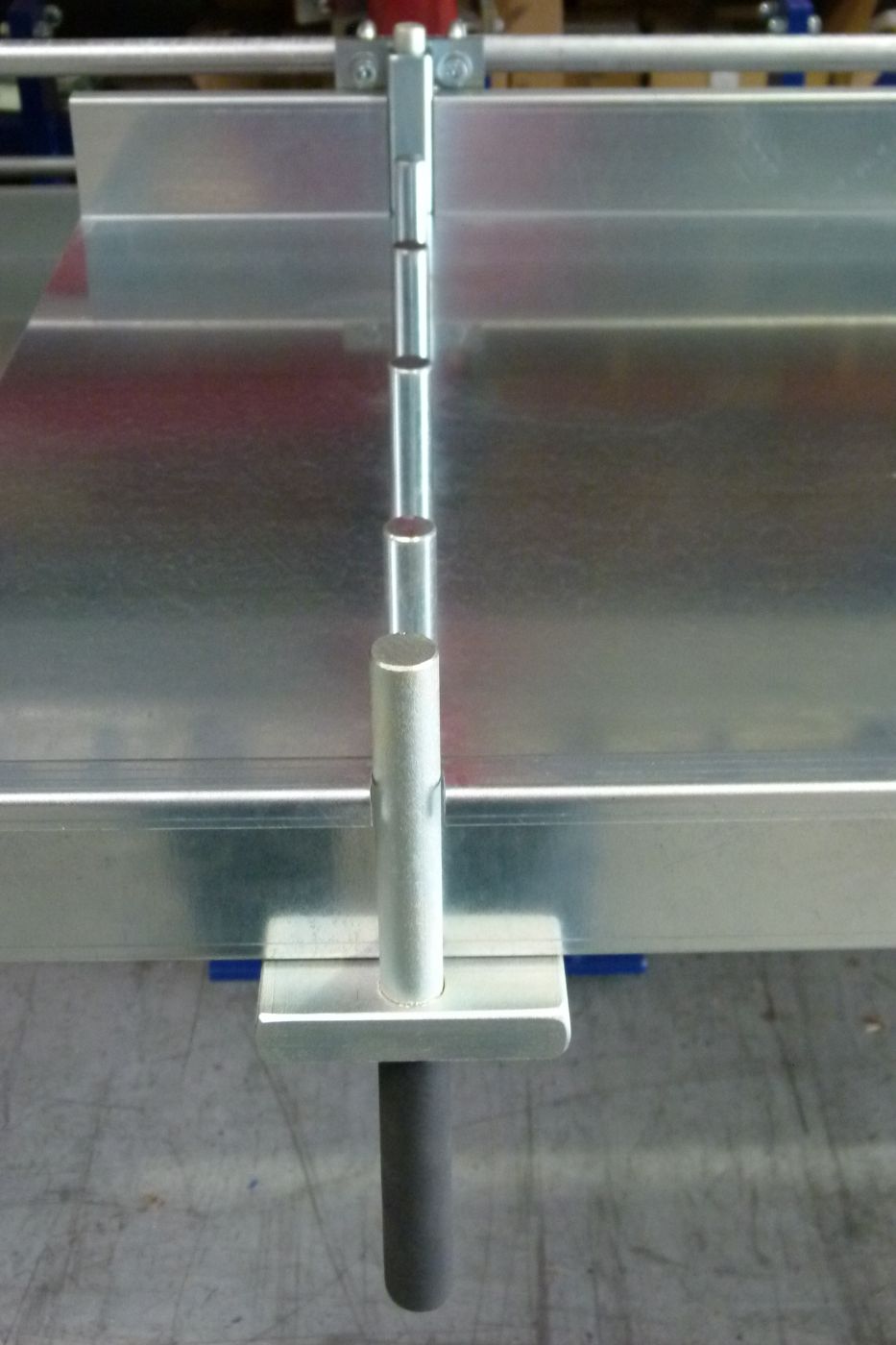

Usable depth can be subdivided from 75 : 75 mm using insertion bars and pins, infinitely variable subdivision in tray length, with edge protection, galvanised, tray length 2,500 mm, tray height 80 mm, incl. 4 insertion bars and 20 pins for individual compartment subdivision.

Above the swivelling levels for forklift operation, cannot be swivelled out, height-adjustable in a plug-in grid of 75 : 75 mm, at any overall shelf height.

SKU: swingout Category:

Delivery time: approx. 8-10 weeks

Back to the top of the page

ArmStrong® swingout Heavy-duty long goods storage for crane operation

During the development of this patented Long goods handling storage system for the Crane operation has storemaster® has focused its particular attention on designing a long goods shelving system that is the ultimate in long goods storage technology in terms of work safety, accident prevention, handling, flexibility, resistance to faults and unlimited service life, and which is characterised by numerous unique features.

Back to the top of the page
The small differenceThe finite element software-supported and empirically sophisticated engineering used in the development of this long goods swivel arm racking system for crane handling is the guarantee of smooth manual operation with a 20-year functional guarantee.

The permanently changing static-dynamic flow of force acting on the swivel arm joint due to the rotary movement requires a special tuning of a particularly suitable rolling bearing combination. For a Permanently reliable function requires stable fixing of the cardan shaft when absorbing radial and axial forces simultaneously, as well as minimal rolling friction; this is provided by high-quality, permanently lubricated, double-row shafts with high load ratings designed for the heaviest loads. Spherical roller bearingwhich are suitable for successfully compensating for misalignments due to their angle adjustability.

The seemingly oversized, heavy highly stable The stud frame prevents the devastating effect of an otherwise later Misalignment The precision swivel arms are the ultimate prerequisite for successfully demonstrating their desired perfection for an unlimited period of time.

Das reichhaltige Zubehör, sowie die innerhalb eines Systems mögliche Kombination aus schwenkbaren und feststehenden Kragarmen zeichnet die hohe Flexibilität dieses Systems aus. Sogar die Aufstellung ohne Bodenanker bei Verbundstein, weichem Asphalt, Fußbodenheizung, etc. ist realisierbar.

Die Schwenkarme sind gegen selbsttätiges bzw. unbeabsichtigtes Aus- u. Einschwenken autom. arretiert. Das vorsätzliche, gleichzeitige Ausschwenken mehrerer Lagerebenen stellt eine praxiswidrige Fehlbedienung dar. Bei vorschriftsmäßiger Aufstellung ist die Standsicherheit des Systems jedoch auch dann gewährleistet.

This quality product from the company storemaster® is unrivalled on the world market and is therefore the special pride of its creators.

Back to the top of the page

Back to the top of the page

Accessories included:

  • storeboy® Rolling step
  • Telescopic grab hook

Accessories optional:



  • Platform ladder
  • Craneable long goods stacking cassettes
Quantity discount
From a value of goods ≥ 5000€ you will receive an individual quantity discount. Simply add the selected product to the shopping basket.
Does not apply to already reduced offers.

You can find more information on calculating quantity discounts and payment methods here:

Payment & discount "
Shipping conditions
Within Germany goods value < 5000€ flat rate shipping costs 250€
Free delivery within Germany from goods value ≥ 5000€ CIP
Within the EU EXW ex works
Outside the EU EXW ex works plus 5% foreign flat rate
You can find more information about the shipping conditions here:
Shipping details "
