Sheet metal picking system
storemaster® - NEW PRODUCT
The pre-picking of sheets enables the continuous, unmanned processing of any number of single-batch orders or small batches on cutting systems with automatic sheet pick-up.
Delivery time: 12-16 weeks
The storemaster® Sheet metal picking system…
storemaster® Innovation 2023
The necessary material handling of entire packs of sheets to remove a single sheet, including machine operation, is completely eliminated. During the processing time of the pre-picked orders, the Sheet metal picking system the next follow-up orders from the quickly accessible and easy-to-operate 60 drawers compiled. This is done by means of a convenient, manually operated HandlingMaster Sheet metal manipulator incl. a Sheet metal separating device to neutralise the adhesive forces. The one used for sheet removal, Fully electrified The overhead travelling crane also takes over the loading of the drawers after they have been placed on a PalEx® depalletiser were freed from the wood.

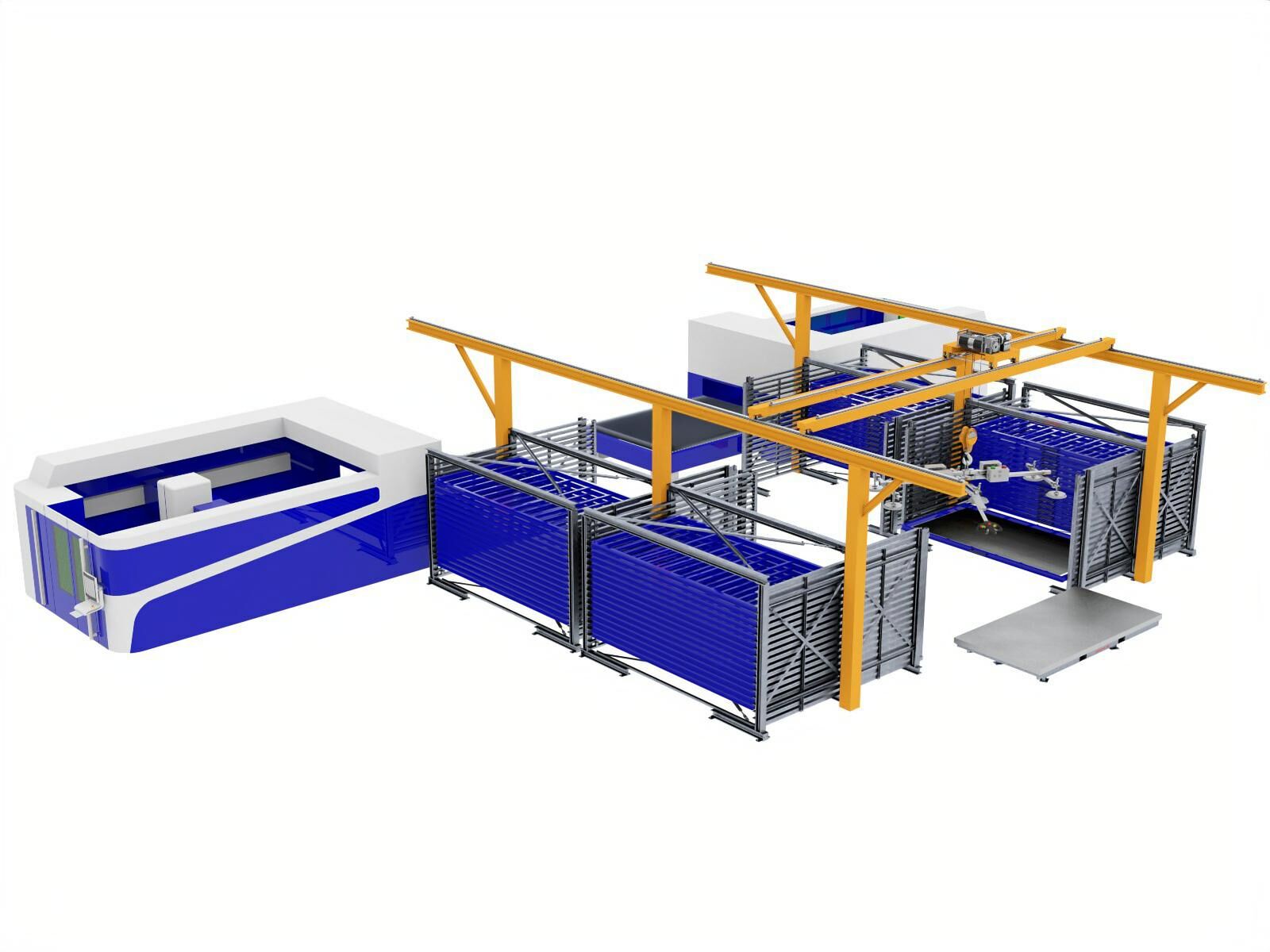

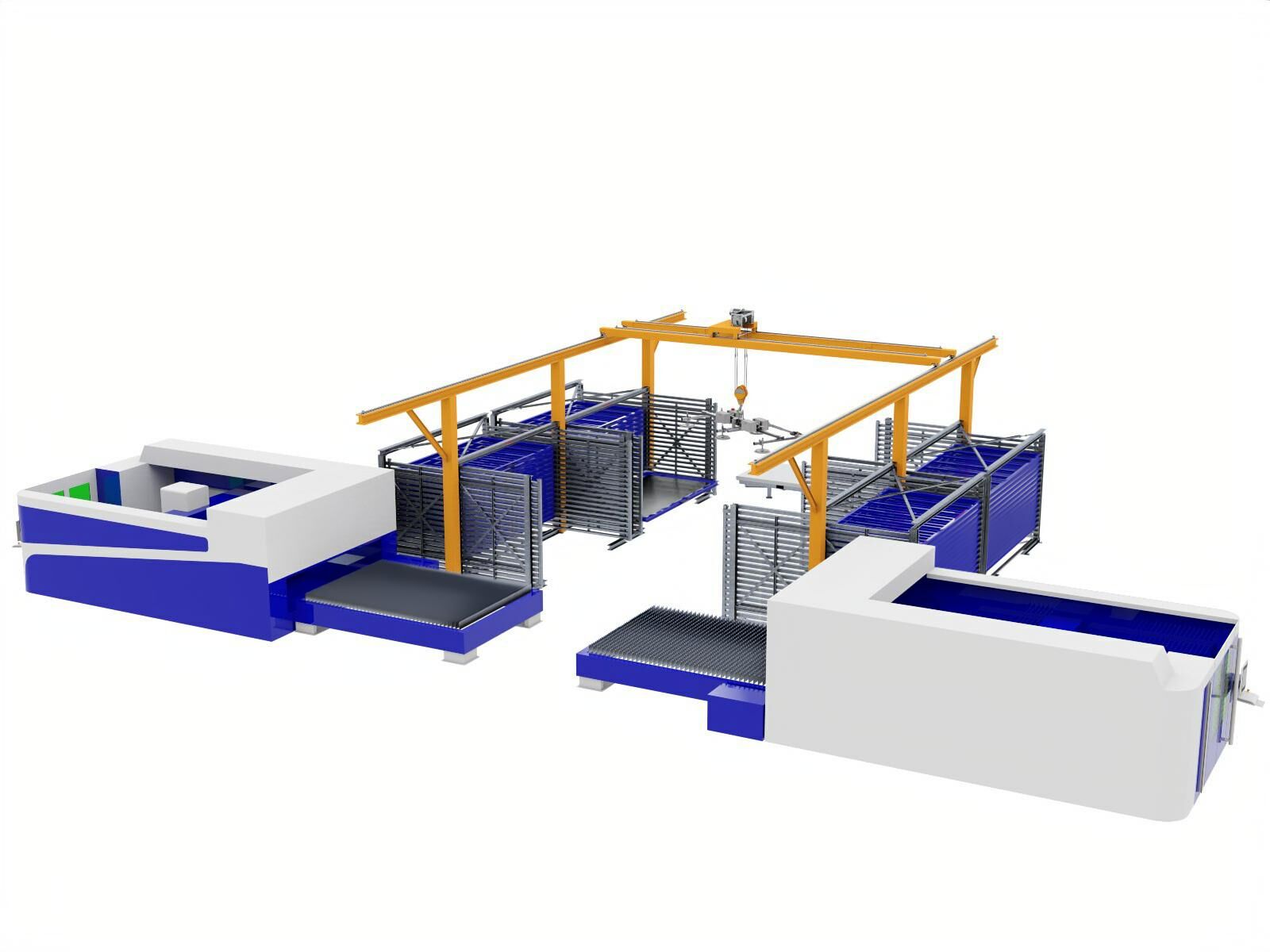

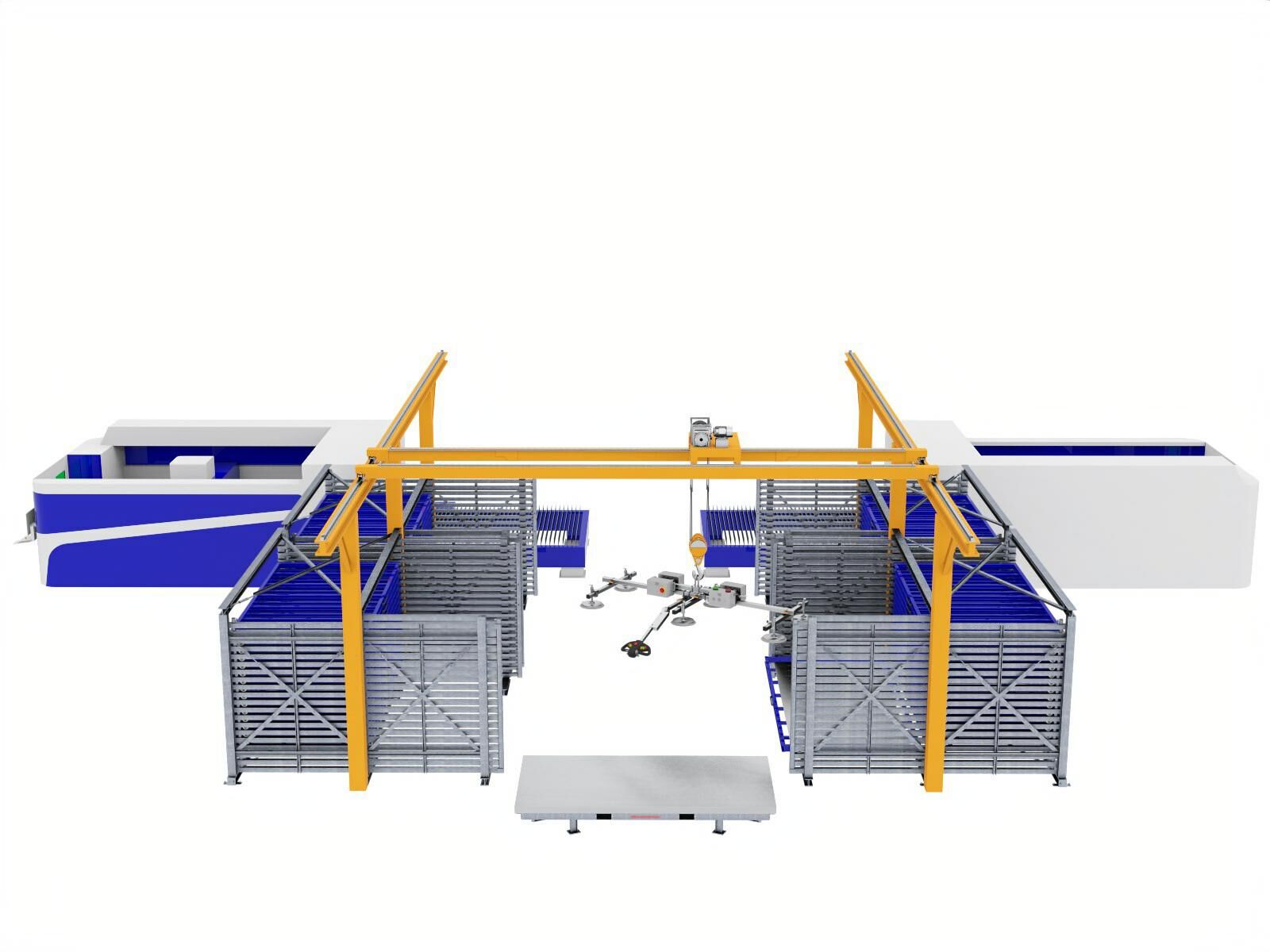

Example of a sheet metal picking system:
- 4x Large format TwenTower® Sheet metal drawer shelf with 15 storage levels, each with a permissible drawer load of 1.75 tonnes and 50 mm usable height
- Double girder crane for 2 t permissible hook load; bridge travel, trolley and chain hoist with electric drives, incl. crane runway support structure

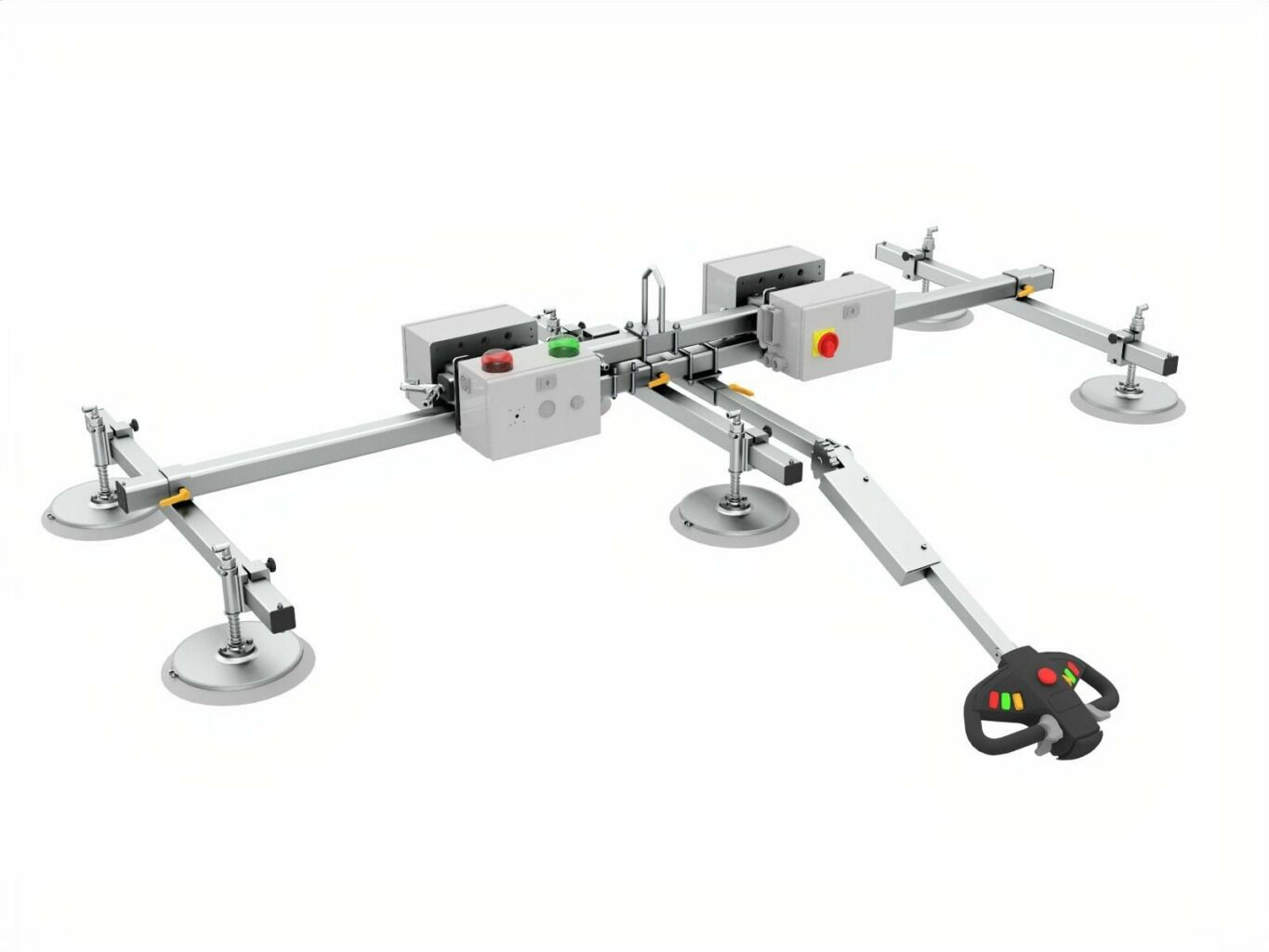

- HandlingMaster Sheet metal manipulator in special ergonomic design with integrated operation of all crane functions on the control panel
- 2x PalEx® classic for depalletising from the wooden pallet

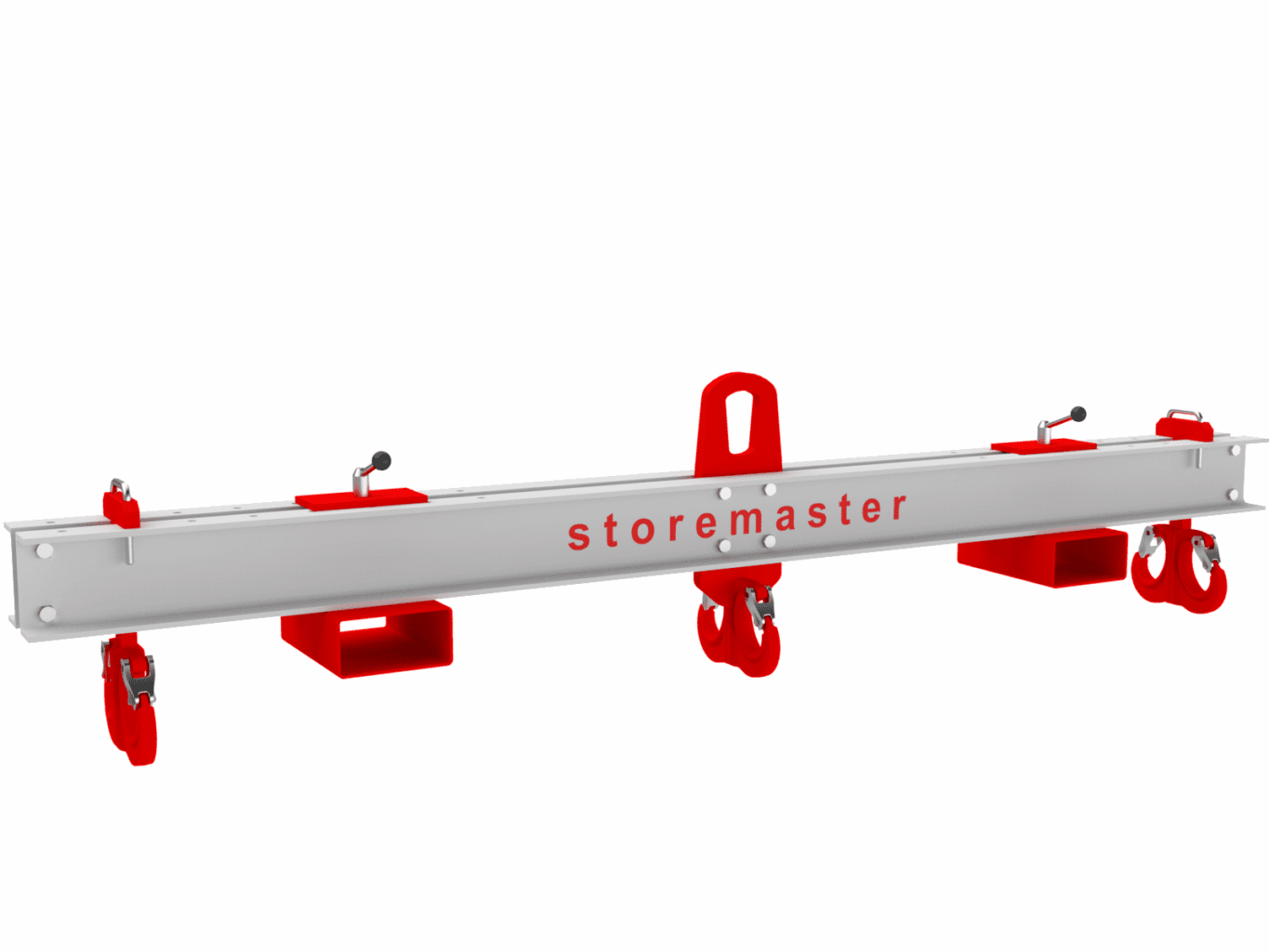

- LoadingBeam Universal loading traverse for parcel loading of drawers
- StoreKeeper® Smart App Universal warehouse management software
The system is equipped with further drawer towers Can be extended as required. In the optional Top levels additional system pallets can be stored for processing larger orders.
Another option is the additional operability of conventional Shuttle table cutting systems.
In addition to sheet metal processing companies, this picking system is also suitable for the Sheet metal trade of great economic benefit.
The time, personnel and equipment savings achieved by pre-picking small orders using the particularly rationally designed storemaster® Sheet metal picking system enables the efficiency of a Amortisation period of only approx. 1 year ! An increase in productivity of approx. 50 % can be assumed.
The sheet metal picking system
storemaster® Innovation 2023
Ensuring that your manufacturing process is effective and economical for small batches or individual parts can be a challenge. A proven solution to overcome this challenge is to pre-pick sheet metal packages.
1. maximum flexibility for small series: The pre-picking of sheet metal packs makes it possible to reduce the batch size to 1 without compromising efficiency. This flexibility is crucial in order to meet the increasing demands for customised products.
2. cost savings through faster processing times: The precise picking of sheet metal packages allows you to significantly reduce set-up and material handling times. As the sheet metal packages are already put together in advance, they can be forwarded directly to the processing machines. This significantly shortens production times and costs and enables you to complete orders faster and fulfil customer requests promptly.
3. Precision and quality control: Pre-commissioning enables a quality-assured allocation of the material to the respective cutting order before it enters the production process. This minimises errors and rejects, which improves the overall quality of your products.
5. increase in productivity: Thanks to shorter processing times and reduced reject rates, you can significantly increase the overall productivity of your production facilities. This can lead to higher sales and profits.
Overall, the pre-picking of sheet metal packages for small series and individual parts offers numerous advantages, from cost savings to improved product quality and increased productivity. If you are looking for a solution to optimise your manufacturing processes and increase your competitiveness, pre-picking is definitely worth considering. Don't miss the opportunity to take your production to the next level and fulfil customer needs even better.
We have compiled the following downloads for this product:
Creditreform Solvency Certificate
DVS-Zert - Conformity of the factory production control
DVS-Zert - Welding certificate
RAL-RG 614 Quality and testing regulations
Shelf Inspection Form
Welding certificate according to EN 1090-1 + EN 1090-2_certificate
Forklift truck guidelines-1 BGI 545
Accident prevention Storage technology
No downloads found.
Passendes Zubehör
-
TwenTower® classic
from 10.572,00€Sheet metal storage drawer rack
Pull-out runner walls without ground contact
Drawer safety catch according to BG
by means of more automatic Overswing lock
Prof. steel construction with 20 year guarantee
Manual extract and electric
The storemaster® Original from 1996excl. VAT
See details Dieses Produkt weist mehrere Varianten auf. Die Optionen können auf der Produktseite gewählt werden -

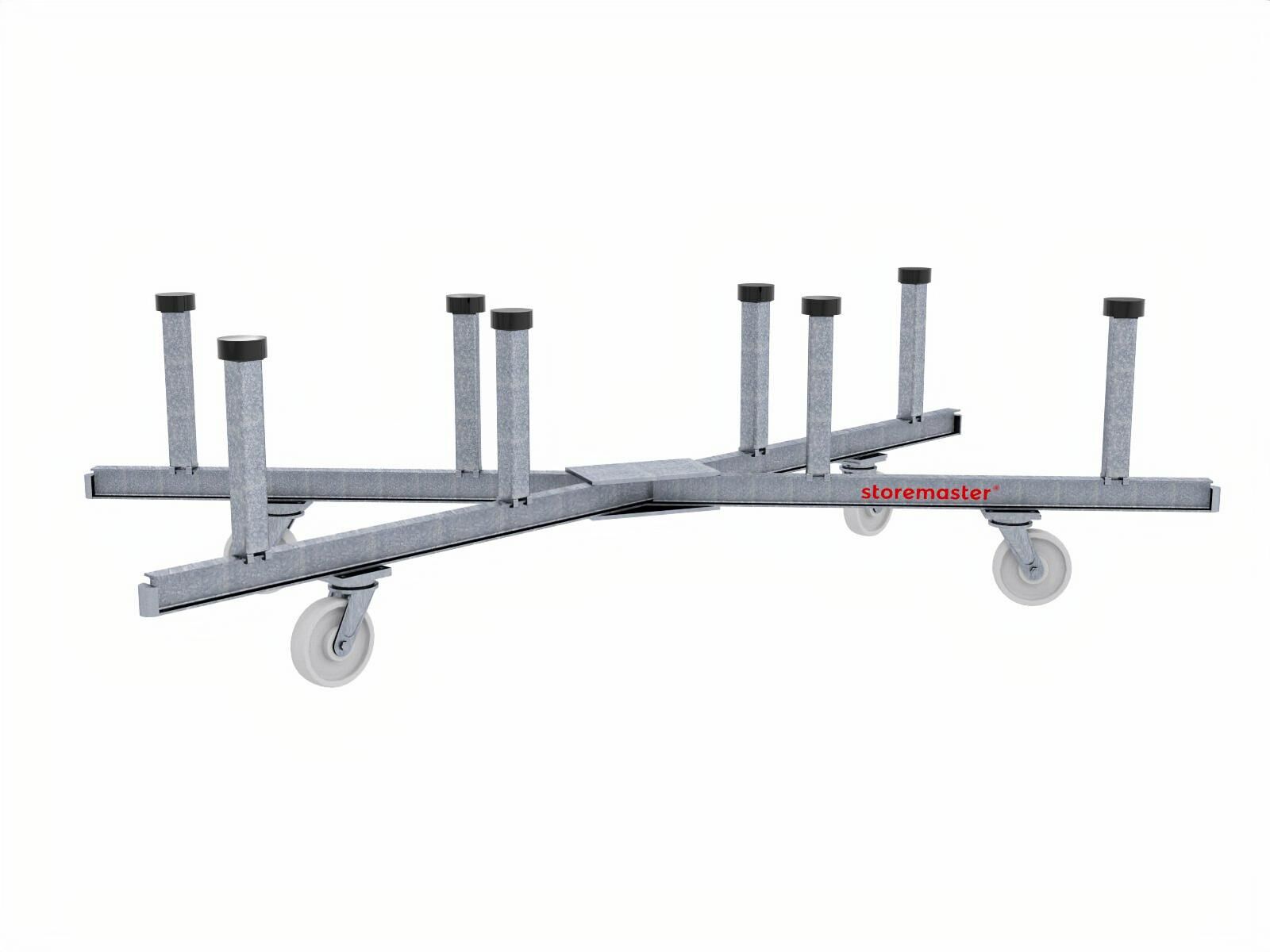

PalEx® classic
