ArmStrong® plus

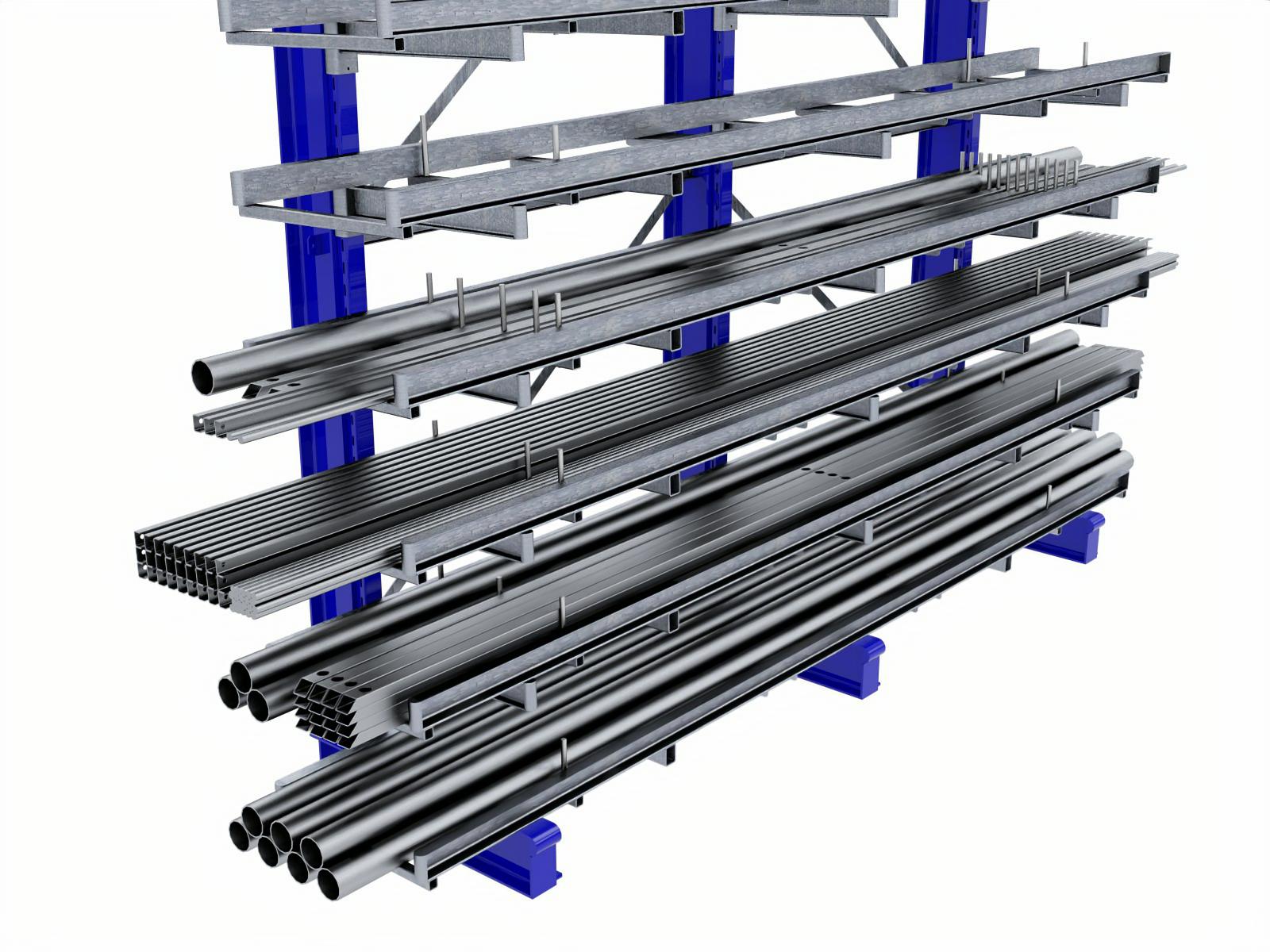

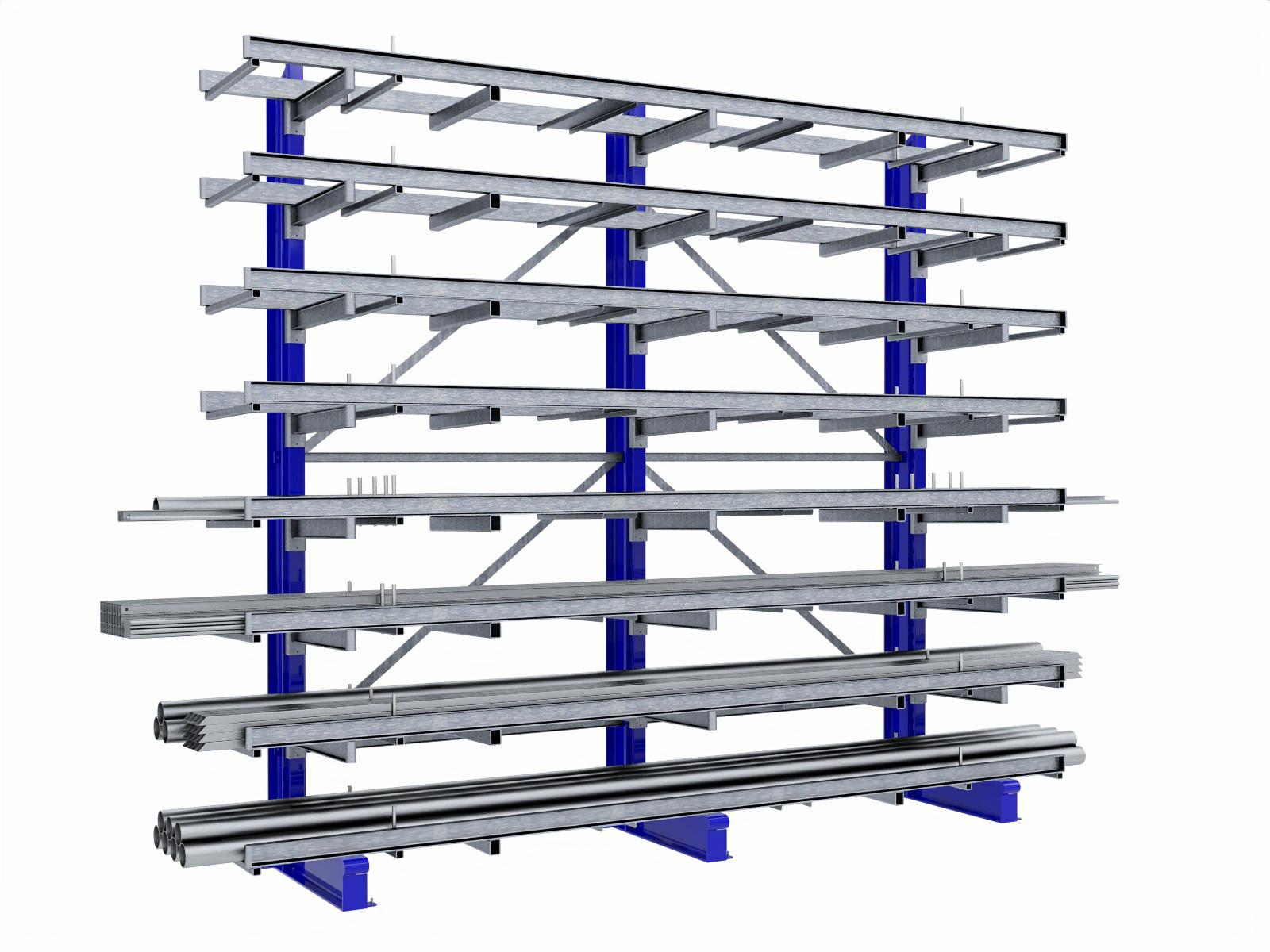

Cantilever shelving system as a patented safety bolt system with positive-locking, i.e. easily detachable, tool-free adjustable shelf support safety suspensions (no wedging or jamming); safety projection 2°, Half-round solid steel edge protectors on base beams and shelf supports, shelf supports height-adjustable in 75 mm plug-in grid, shelving column with push-through protection, locked against overloading due to incorrect use, stat. Design, deflection and increased tilt resistance in accordance with RAL-RG 614 of the Quality Association for Storage and Operating Equipment, and DIN EN 15635 permissible deflection l/200Safety against breakage 2-fold; floor surface pressure < 50 kg/cm2, floor beams with dowel brackets for on-site floor anchoring (tilt-proof). Without tension-proof anchoring on the ground through exclusive storemaster® Design features - simple dowelling only against shear, optionally with foot beam diagonal braces without dowelling).

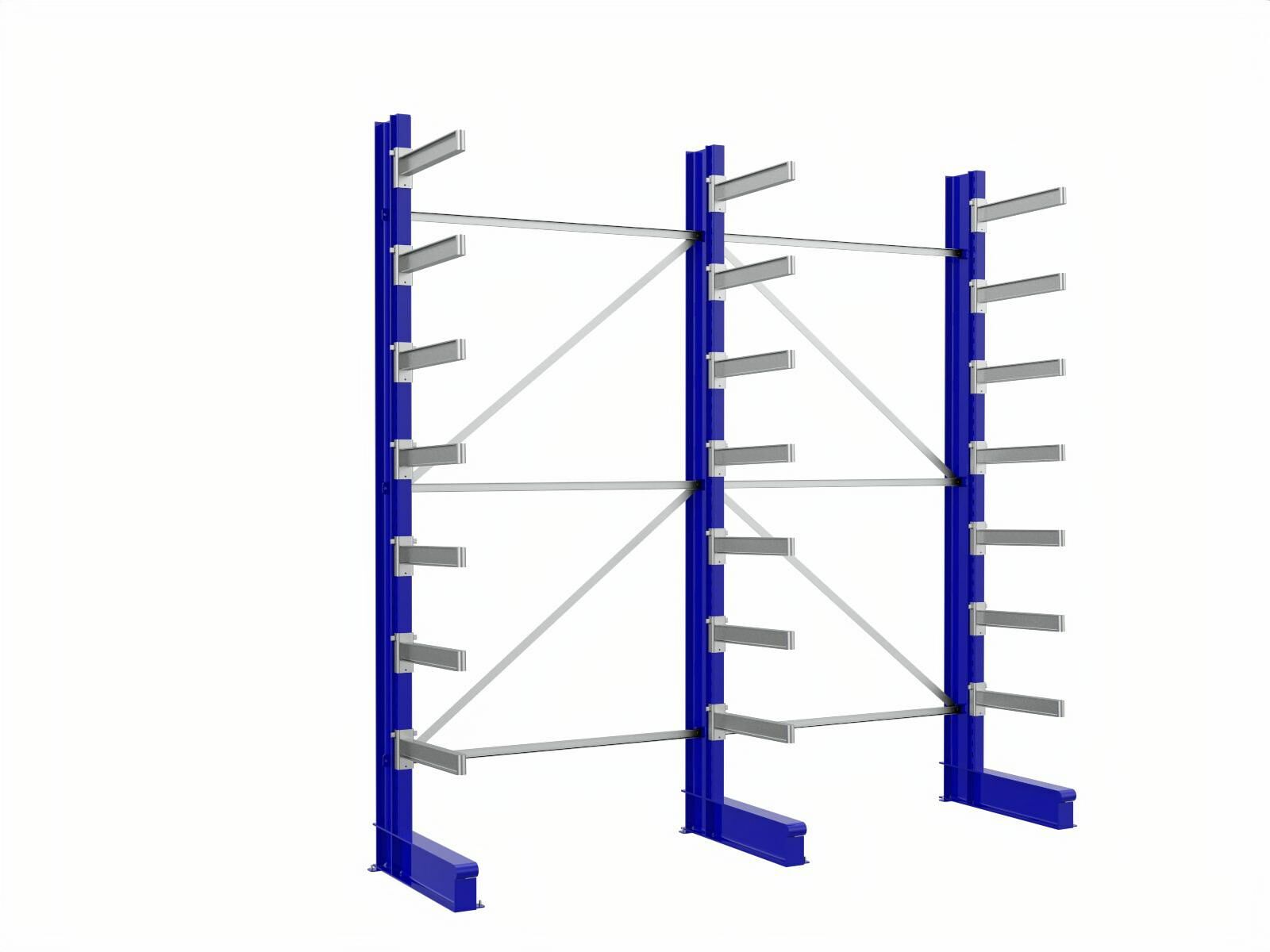

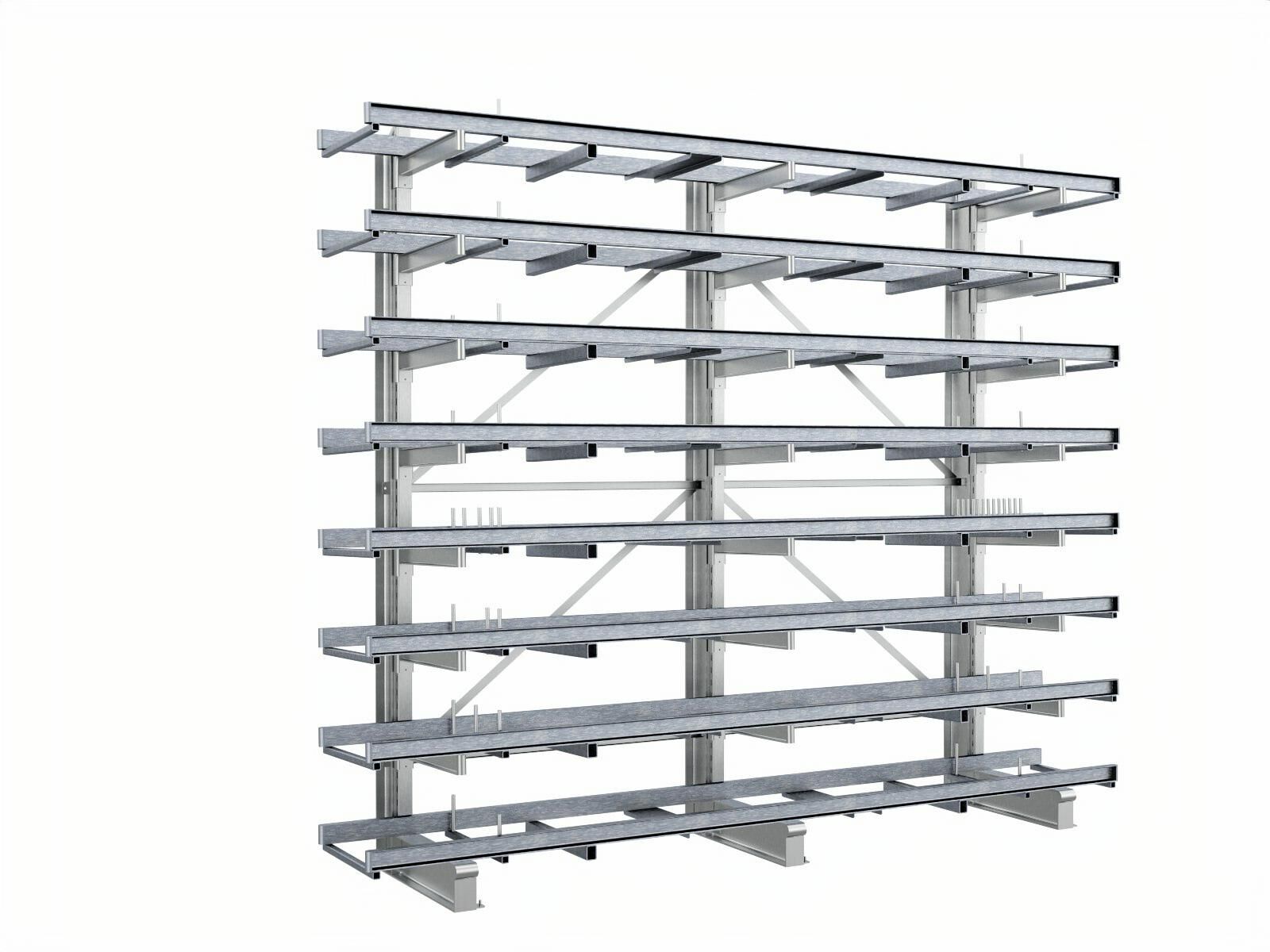

Shelving construction against abrasion and permanent corrosion protection totally hot-dip galvanised in accordance with DIN EN ISO 1461, suitable for indoor and outdoor use, uprights painted in RAL Classic colours on request.
Incl. floor anchors, assembly and operating instructions, as well as system type plates with manufacturer and shelf data in accordance with BG regulations. Quality and quality assurance in accordance with RAL-RG 614 quality and testing regulations.

System brief description:

storemaster® Due to their special design features, cantilever racking systems require none required according to RAL-RG 614 Tensile strength floor anchoring and are therefore suitable for any type of flooring. When using foot beam bracing, ground anchoring - even against displacement - can be completely dispensed with.

The permissible deflection for upright columns and Cantilevers from l/200and the double safety against breakage not only fulfils the criteria for the annually prescribed shelf inspection, but also the BG insurance cover in the event of an accident on the shelf.
(BGR 234 - 4.1.2.3 Deflection - The maximum deflection of the load-bearing elements of storage equipment when the permissible working load is applied must not exceed 1/200 for metallic materials). Based on these formal structural specifications, the dimensioning of the load-bearing components (moulded steel) is calculated (system statics) by applying the case data of a project to the specific formulae of the system. Due to the statically indeterminate plug-in connection (form-fit/force-fit), it was necessary to empirically verify the load-bearing capacity (permissible load moment) of the component connection between the upright column and cantilever arm, whereby a complete type statics is created from the system statics, from which a copy can be developed for testing by third parties, if requested by the customer at cost. In this way of project-related, individualised structural calculations (drop statics), all safety-relevant aspects are fully covered.

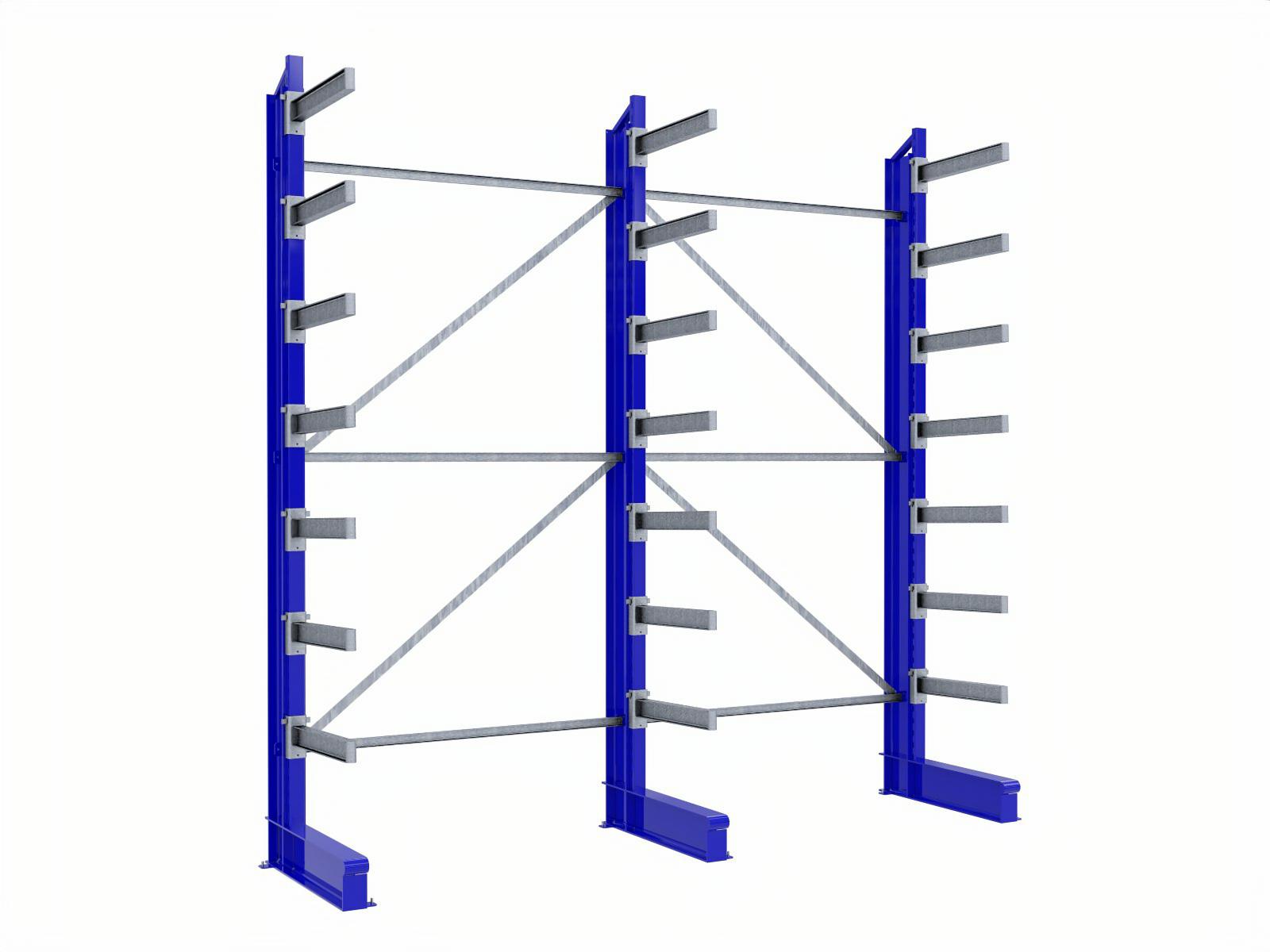

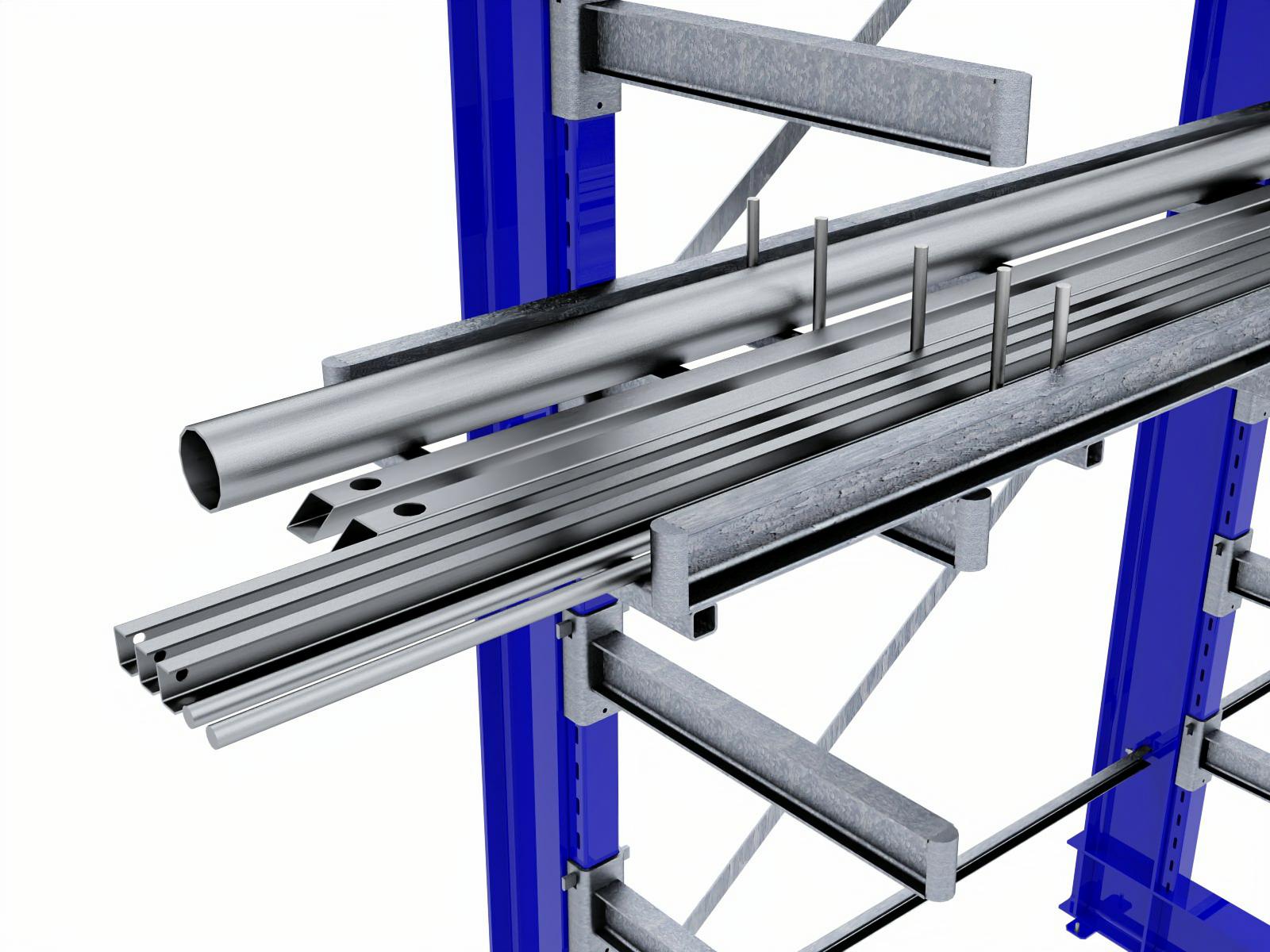

The upright columns, which are welded (not bolted!) to the base beams, form a permanently securely fixed perpendicularity to each other. The clamp-free plug-in bolt connection of the cantilever arms to the upright column enables the shelf heights to be changed quickly and without tools in a plug-in grid of 75 mm using the form-force-lock principle. Indestructible solid steel edge protectors protect against damage caused by forklift truck impact.

The system is hot-dip galvanised by design and therefore permanently protected against corrosion, even for outdoor use.

ArmStrong® - Cantilever racking has been produced since 1998 ...
... with a 20-year guarantee!
