Long goods wagon

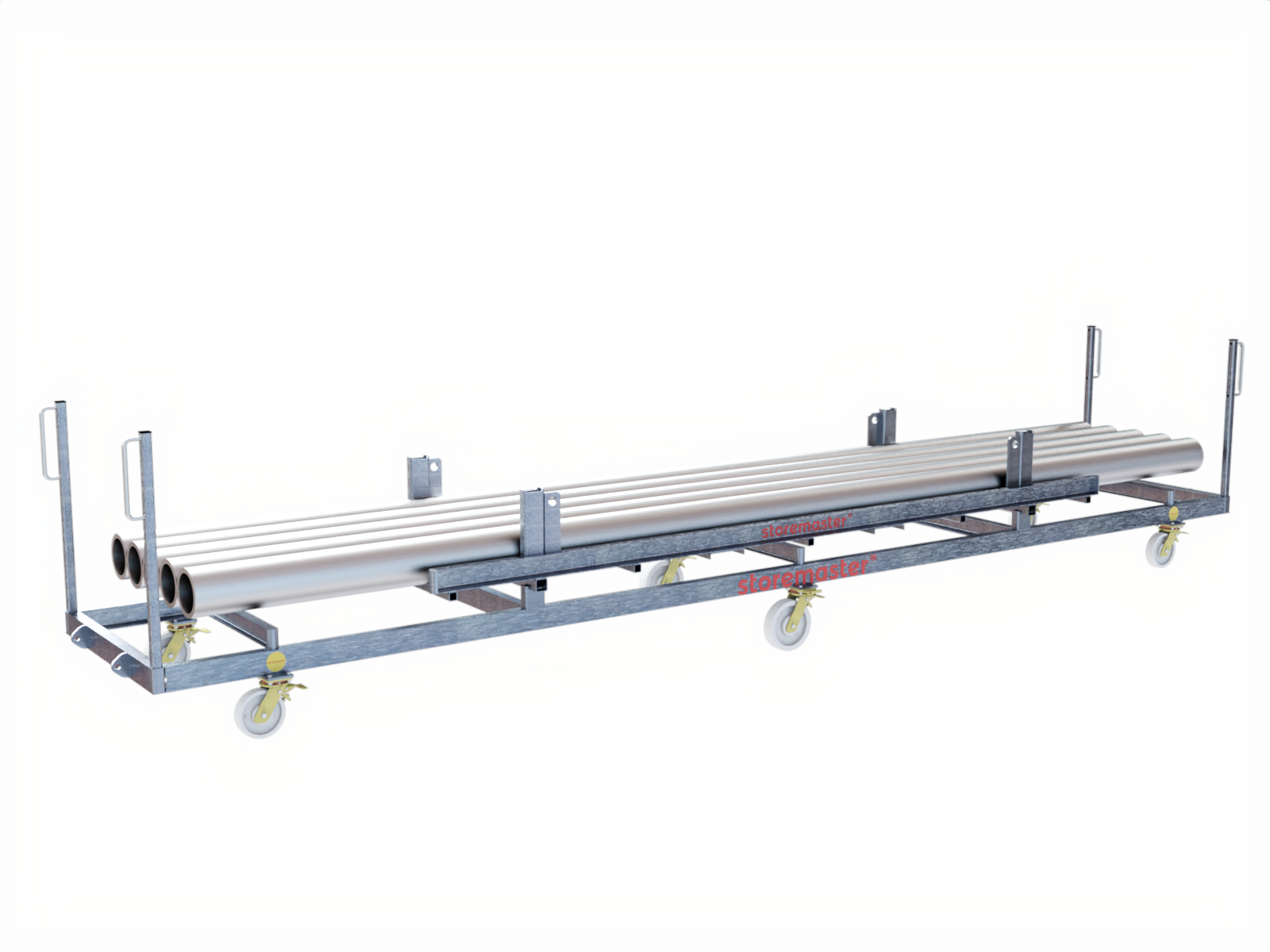

A long goods trolley such as the Flexibolo® LG is ideal for the manual transport of long goods, in particular profiles, bar material bundles, pipes, tubes, rollers, squared timber or crates. The robust design enables the safe movement and transport of a wide variety of loads - whether light or heavy. With a load capacity of up to 3.0 tonnes, this long goods trolley is ideal for demanding applications in the warehouse or in production.

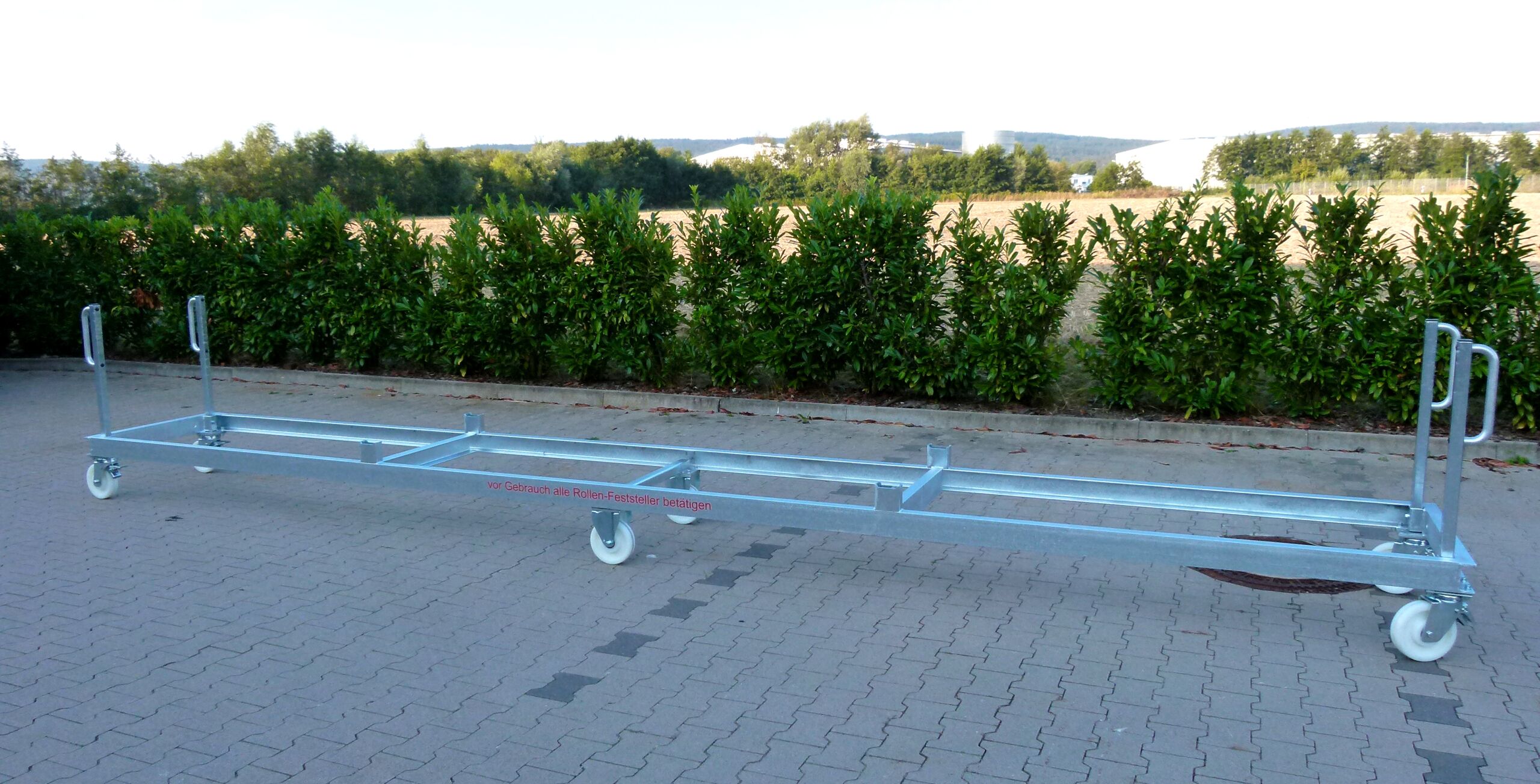

The stanchions on the long sides - 500 mm high and pluggable - ensure open but secure storage of the material on the loading area. A usable depth of 800 mm is available between the stanchions, which makes loading long goods efficient. The length of the trolley depends on the length of the material to be transported and is extended by 500 mm in each case, resulting in a customised solution.

Thanks to four swivel castors with integrated foot brakes, the transport trolley can be manoeuvred in the tightest of spaces - it even turns on the spot. This is particularly important when space is at a premium. The construction is galvanised in accordance with DIN EN ISO 1461, which makes it durable and weather-resistant for outdoor use.

The Flexibolo® LG impresses with its stable design, the option of cassette mounting, the double coupling eyes on the side for the drawbar connection and the optimum combination of functionality and safety. This makes the transport of pipes and other long goods particularly efficient and safe - on a loading area with a usable depth of 800 mm between the stanchions that adapts to your needs.

Yes, the Flexibolo® LG long goods trolley is suitable for outdoor use. This is guaranteed by the hot-dip galvanised surface in accordance with DIN EN ISO 1461, which ensures a high level of corrosion resistance. The design is characterised by its durable workmanship and stable construction, making it ideal for demanding outdoor areas. This means that the long material can be transported and moved safely even in adverse conditions.

The long goods transport trolley is equipped with welded low bars that enable loading by forklift or crane. This ensures secure positioning of the load and also protects sensitive contents from slipping. The trolley has a payload of 3.0 tonnes - making it a genuine heavy-duty trolley designed for industrial use.

With four supporting swivel castors with foot brakes, stable positioning is possible at all times. The 90° reversible handle on both ends enables ergonomic handling and also offers more flexibility during use. The double coupling eyes on both sides open up additional options, e.g. for connecting a drawbar.

The combination of robust hot-dip galvanisation, functional design and sophisticated technology makes the long goods trolley a reliable partner for outdoor use. It can not only be used effectively indoors, but also makes a decisive contribution to the efficiency and better handling of heavy long materials outdoors - regardless of the weather, weight or load. This guarantees a long service life.

The long goods trolley is characterised by its high manoeuvrability and is specially designed for flexible transport in confined spaces. As a heavy-duty trolley in a robust design, it offers maximum manoeuvrability thanks to its centrally positioned axle and the four supporting, steerable castors with integrated foot brakes. This means that the trolley can even be turned on the spot, which is particularly advantageous in narrow aisles or densely occupied storage areas.

The transport trolley is also equipped with 90° reversible push handles on both ends, which enables ergonomic handling from both sides. The 90° reversible push handles on both ends enable ergonomic handling from both directions, allowing the trolley to be flexibly guided forwards or backwards - depending on the available space and work process. The stable design and the welded depth bars enable loading by forklift truck or crane and at the same time offer a high level of safety when moving heavy loads.

The design is also designed to be used as a trailer in combination, as the trolley has double coupling eyes on both sides for attaching the drawbar. This means that several transport devices can be coupled together and efficiently towed in series.

With its high-quality, hot-dip galvanised surface, the Flexibolo® LG meets the highest standards of durability and flexibility - the ideal trolley for complex working environments with limited space.

The long goods trolley offers sophisticated and versatile loading options that enable efficient loading of various long goods. Particularly noteworthy are the welded-on depth bars, which enable simple and safe loading by forklift truck or crane. This means that even bulky or heavy materials can be placed precisely and without great effort. The depth bars are also used to position long goods cassettes, if these are used.

The usable depth between the stanchions is 800 mm, which creates a clear loading surface for the materials. The trolley is made to measure - the trolley length corresponds to the material length plus 500 mm. This results in an optimum fit and safe storage of the long goods on the transport trolley. Thanks to its sturdy construction, the trolley is designed for transporting heavy loads - the maximum load capacity is 3.0 tonnes. The four supporting castor wheels with integrated foot brakes ensure a firm stand during loading and unloading as well as manoeuvrable handling during operation.

Although the trolley is not made of stainless steel but is hot-dip galvanised, it is still ideal for outdoor use. The Flexibolo® LG therefore impresses with its sophisticated functionality and safe loading options in any environment.

Compared to other transport trolleys, the long goods trolley offers decisive advantages for internal material flow. Thanks to its centre-axle design with four supporting, steerable wheels, the Flexibolo® LG can turn on the spot - ideal for narrow operating areas. The 90° reversible push handles on both ends allow flexible handling from both directions.

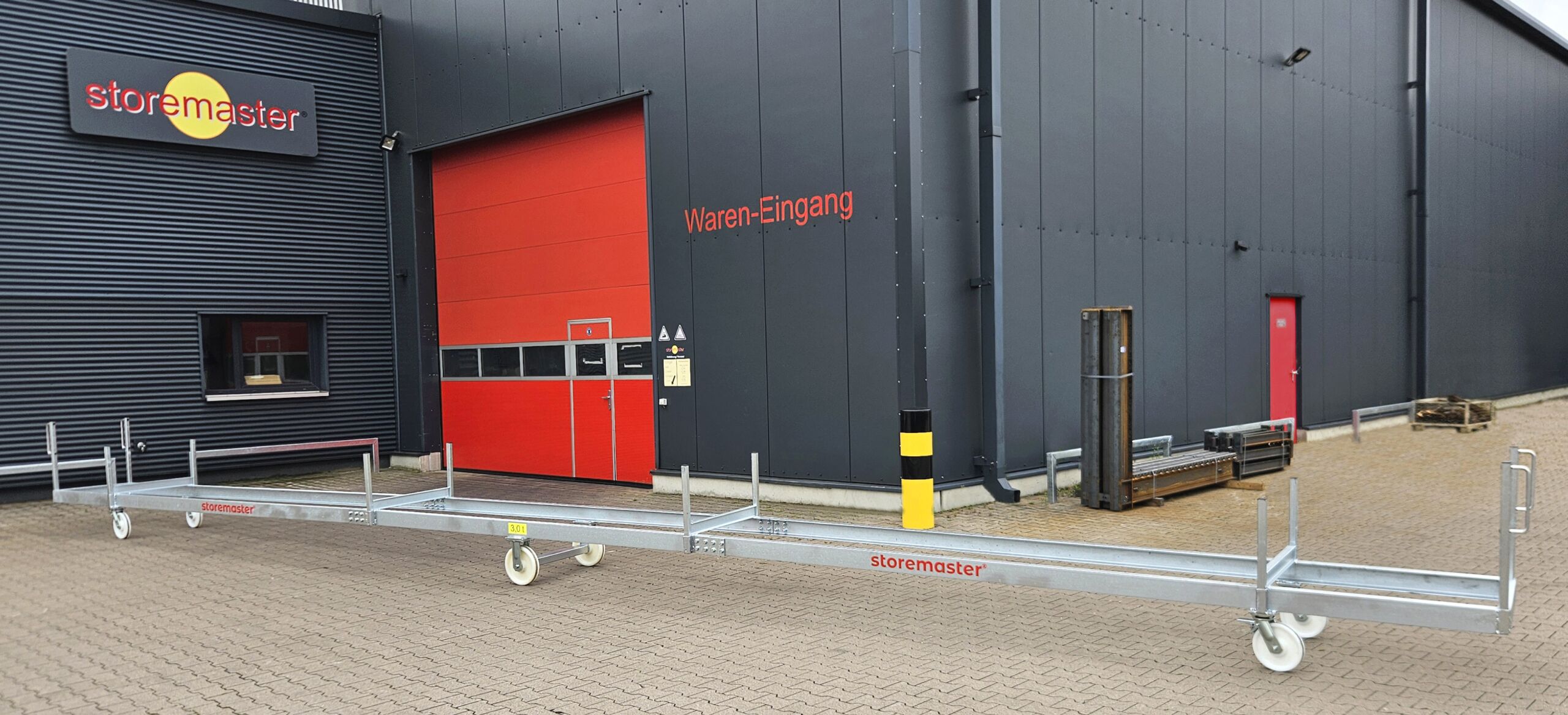

Another advantage is the individual production of the trolley for material lengths between 3 and 12 metres, which allows perfect adaptation to specific requirements. The trolley is also equipped with welded-on depth bars, which makes loading by forklift or crane particularly easy and safe.

Thanks to the hot-dip galvanised surface in accordance with DIN EN ISO 1461, the long goods trolley is corrosion-resistant and therefore also suitable for outdoor use. Double coupling eyes on both sides enable the connection of drawbars - for flexible use in train formations. The Flexibolo® LG therefore offers a sophisticated combination of function, safety and efficiency.

By using specialised long goods storage systems, you can increase your efficiency and productivity. Once your warehouse is equipped with a shelving system for long goods, you can rely on optimum storage conditions for your long and bulky goods. Our shelving systems for long goods are not only robust and stable, but also extremely flexible when it comes to adapting to your storage needs. These systems are designed to store long goods such as bars, tubes or profiles in a space-saving and clearly organised manner.

Do you need vertical shelving with a high load capacity or do you want to store large quantities of pallets or packaging? Our various long goods storage systems, whether vertical racking, horizontal racking or extendable variants, offer flexible solutions for your warehouse.

Thanks to the high load capacity and variable capacity of the long goods racks, you can also store heavy loads safely and stably. Easy handling, whether by means of forklift trucks, ladders or swing-out shelving systems, enables goods to be stored and retrieved quickly. Automatic loading and the option to expand the system ensure efficient utilisation of the available space. Thanks to the low design and the use of stable materials, the long goods storage systems are not only space-saving, but also durable and stable.

Our systems for long goods storage allow quick access to stored goods and therefore make a significant contribution to increasing efficiency in your warehouse management. The short distances and easy handling minimise the effort involved in storing and retrieving long goods, which in turn optimises the production process.
