ArmStrong® swingout

Heavy-duty long goods storage for crane operation
20 years warranty

from 13.479,00€

excl. VAT

Delivery time: 8-10 weeks

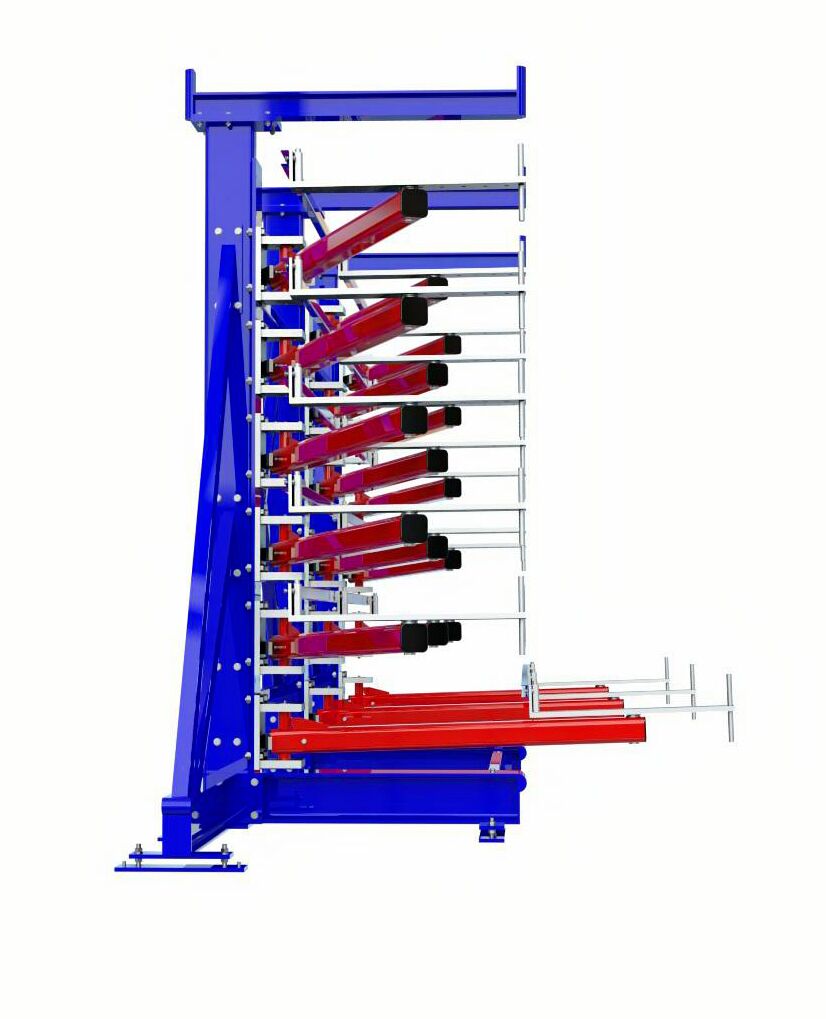

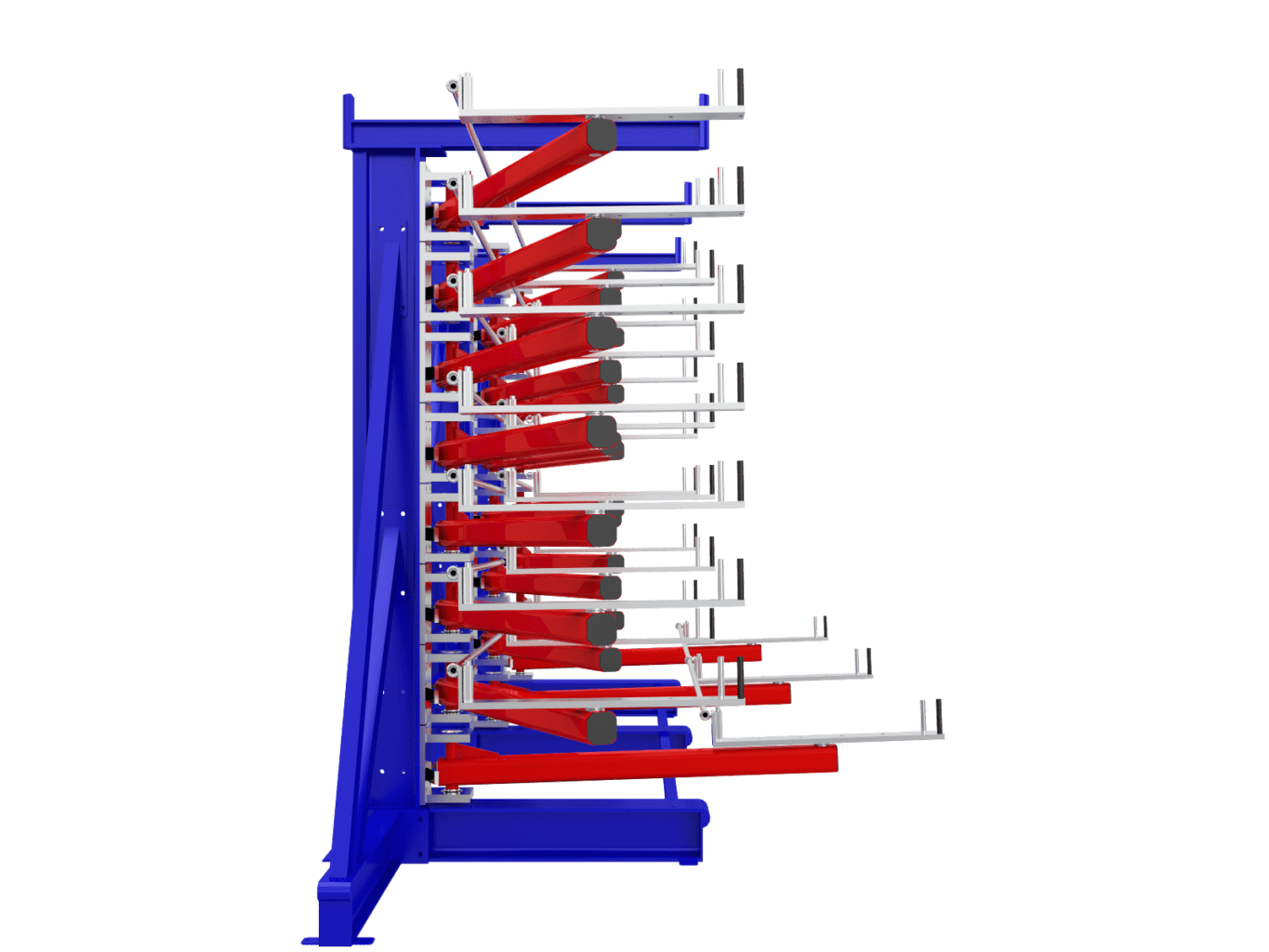

Storage levels can be conveniently swivelled out in seconds from a standing position

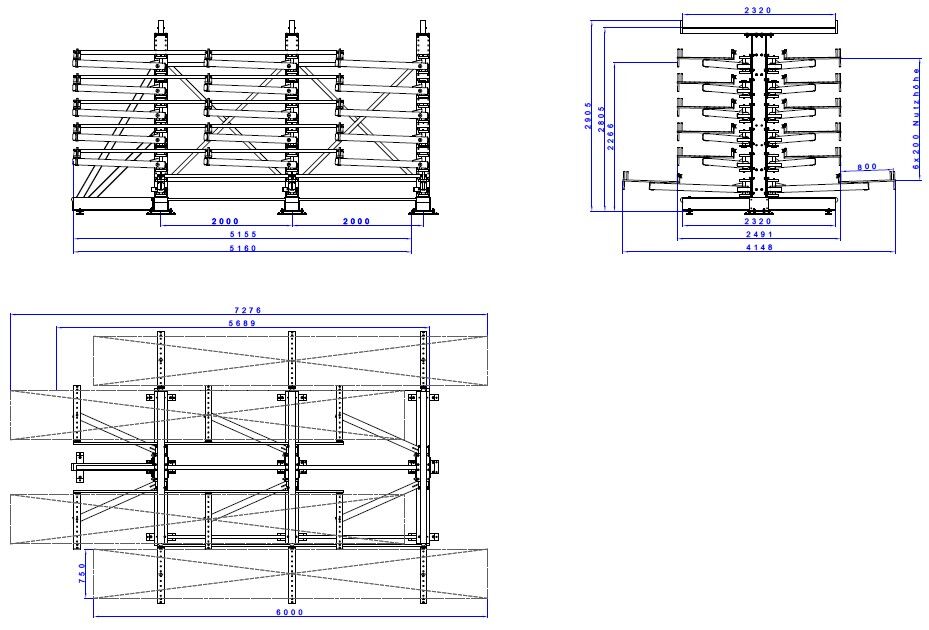

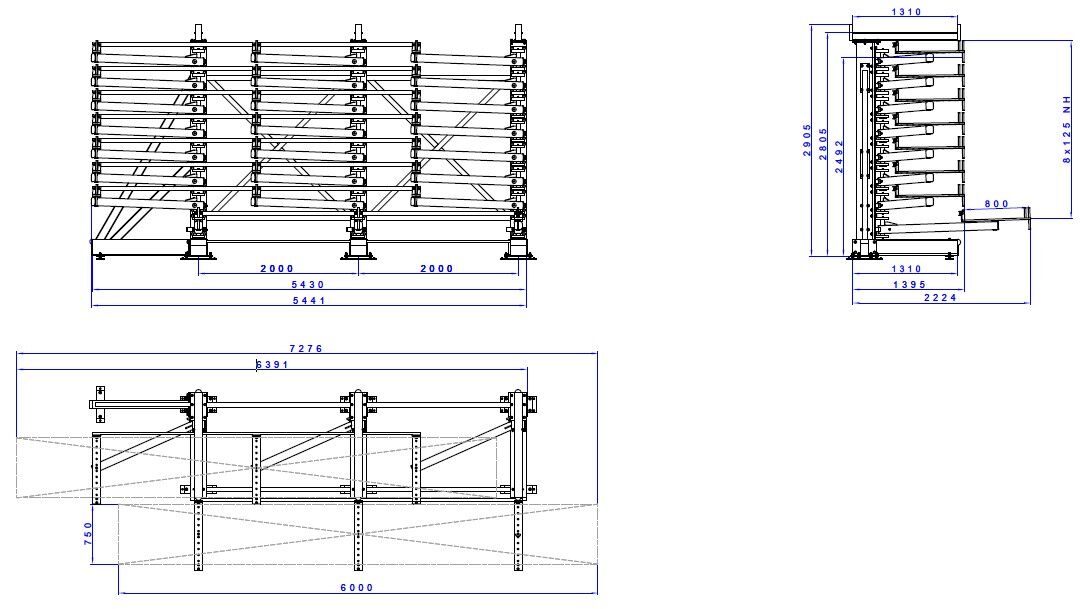

Storage lengths from 2 to 18 m

Delivery: Free delivery within Germany, block-mounted ready for operation

... more product details

Read more

ArmStrong® swingout - storage convenience

Effortless loading of individual shelf levels with long goods by swivelling out the required level in seconds.



Optional system components

Please select from the options provided. The system price will be adjusted automatically.

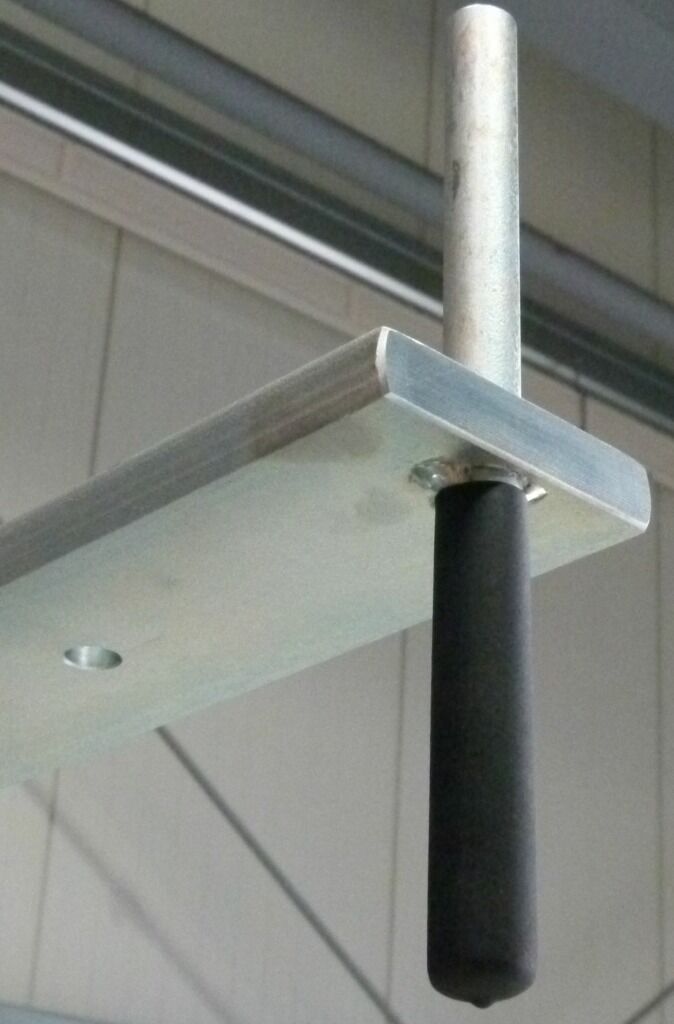

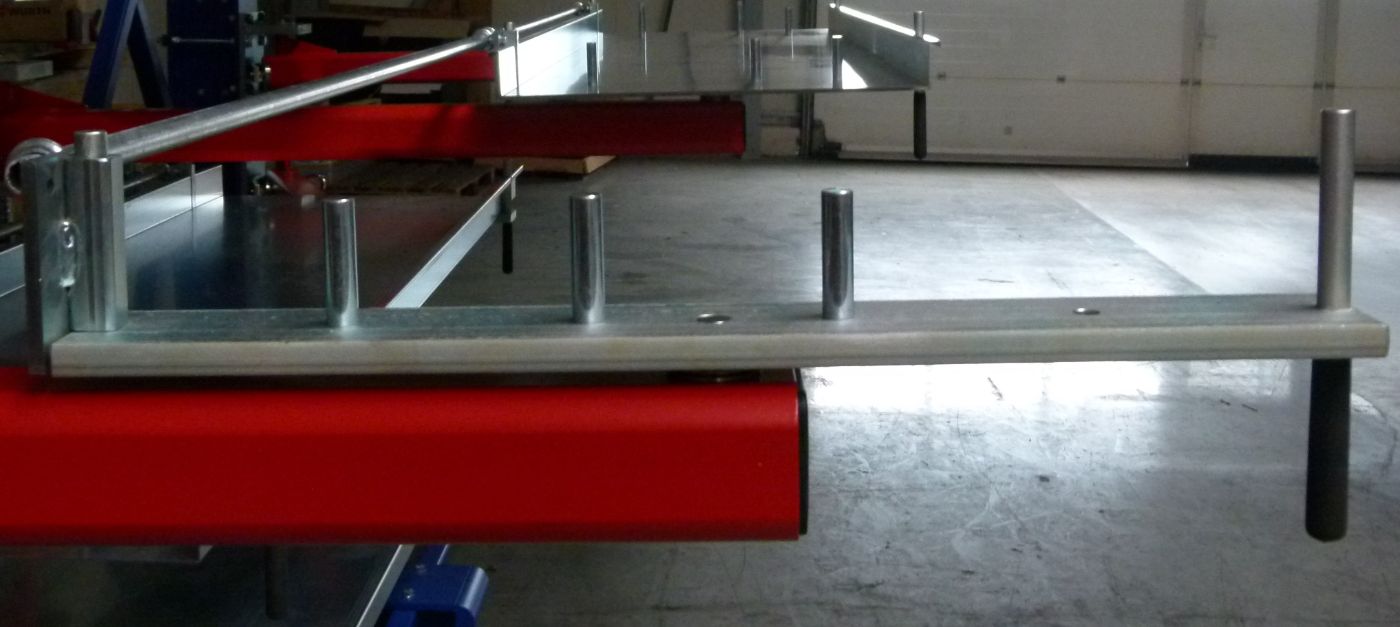

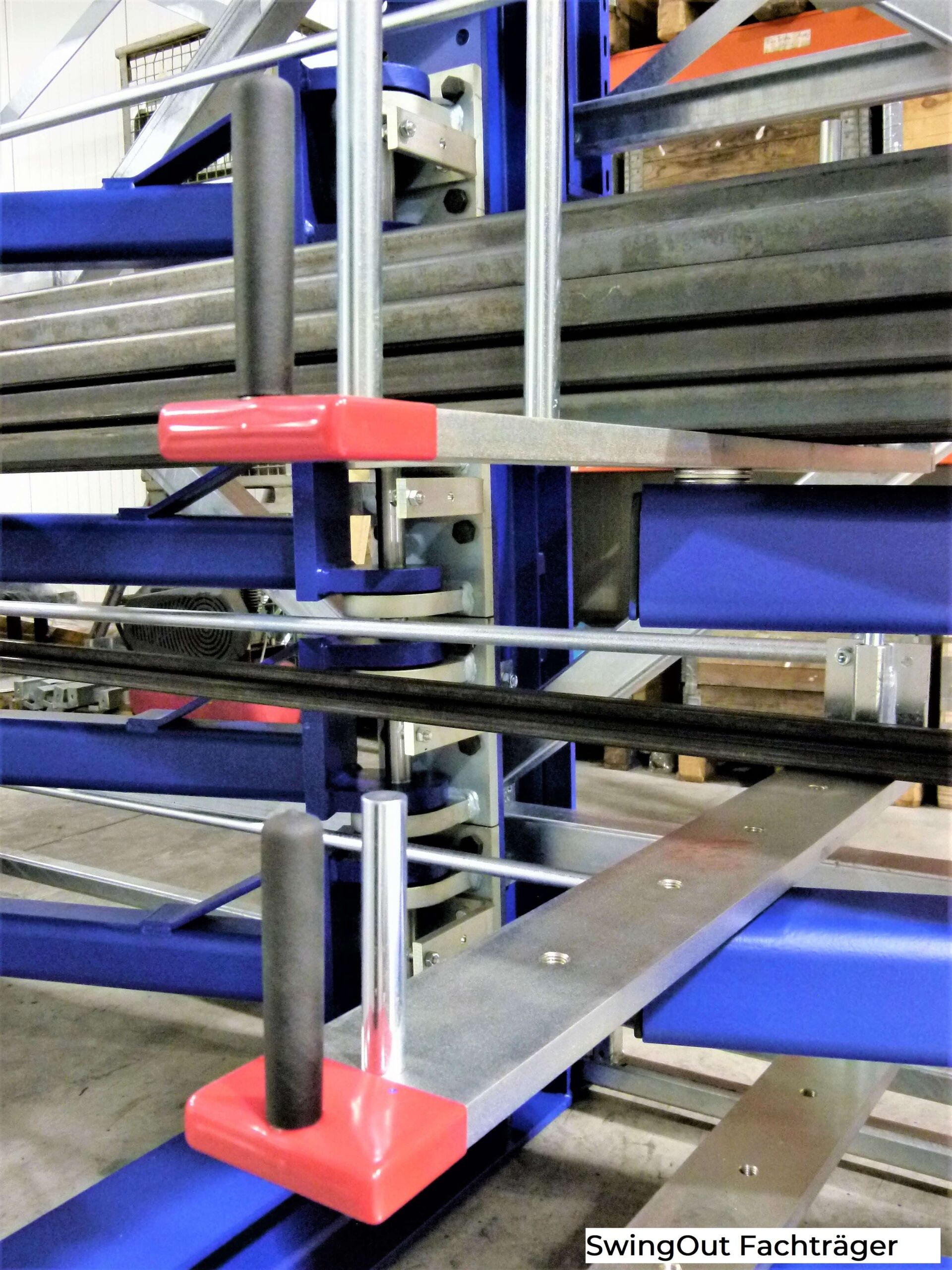

Plug-in bolts for shelf supports and material tray inserts Ø 20 mm for subdividing the shelf depth in 75 mm increments.

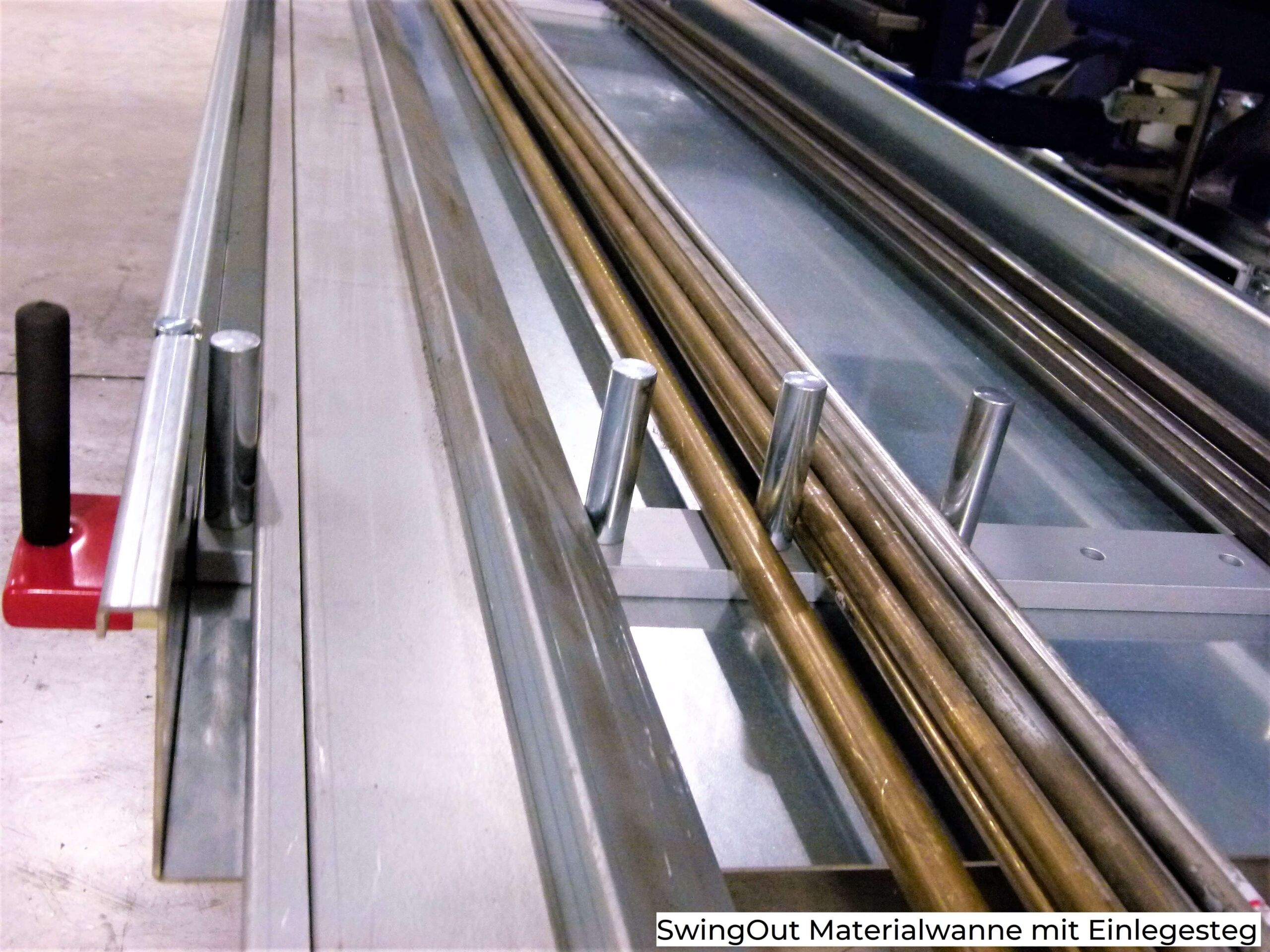

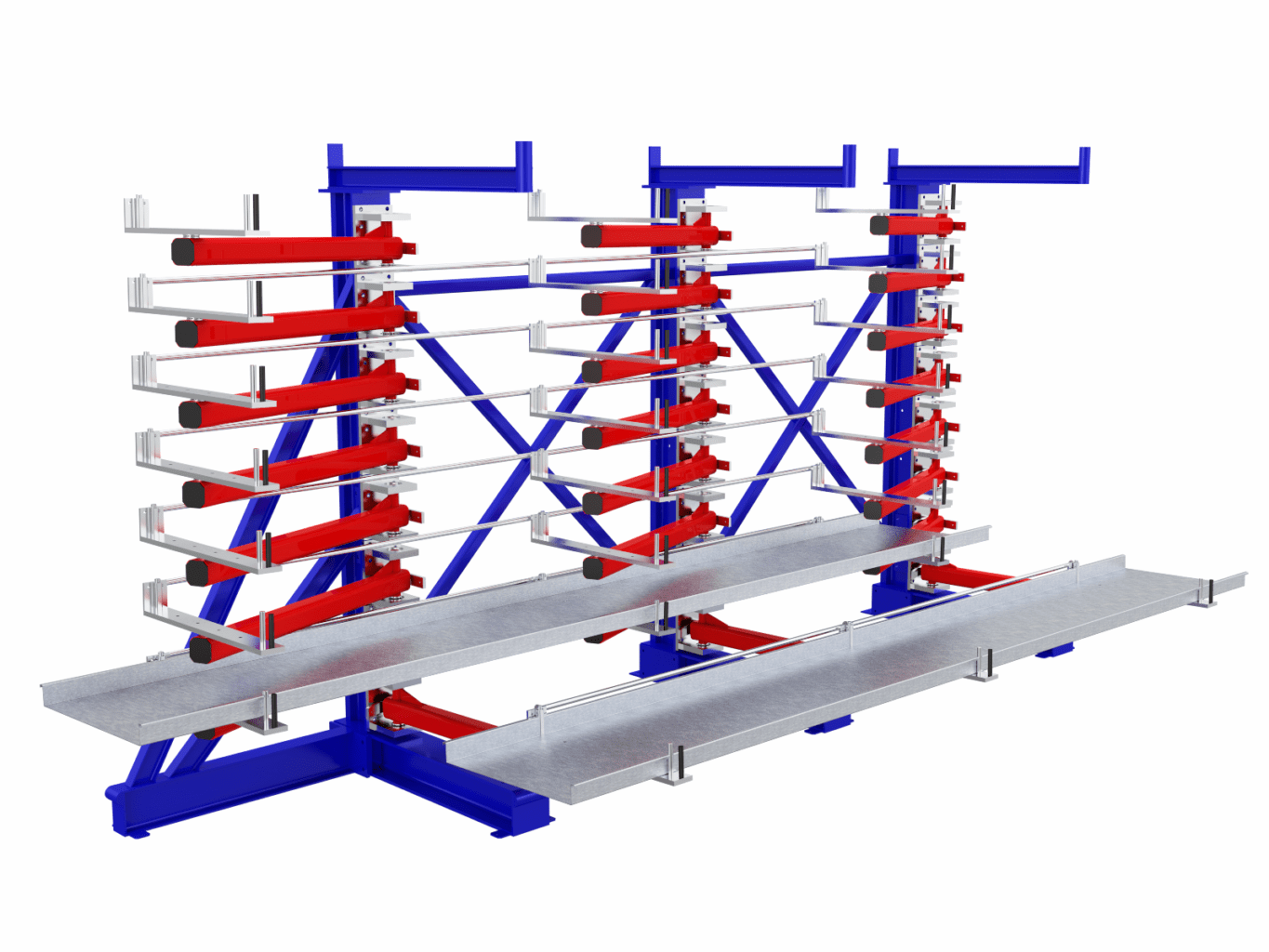

Usable depth can be subdivided from 75 : 75 mm using insertion bars and pins, infinitely variable subdivision in tray length, with edge protection, galvanised, tray length 2,500 mm, tray height 80 mm, incl. 4 insertion bars and 20 pins for individual compartment subdivision.

Above the swivelling levels for forklift operation, cannot be swivelled out, height-adjustable in a plug-in grid of 75 : 75 mm, at any overall shelf height.

SKU: swingout Category: Tag:

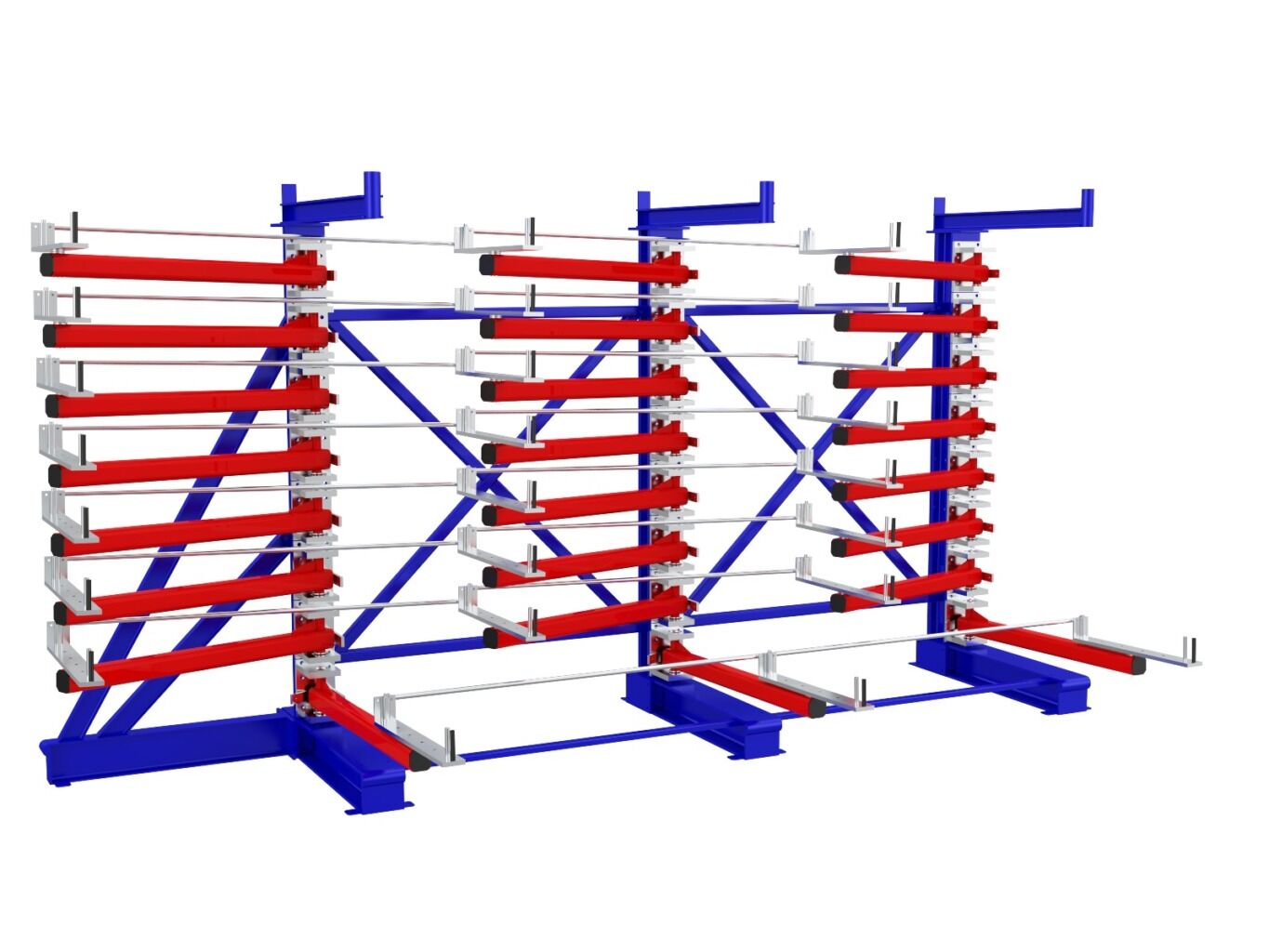

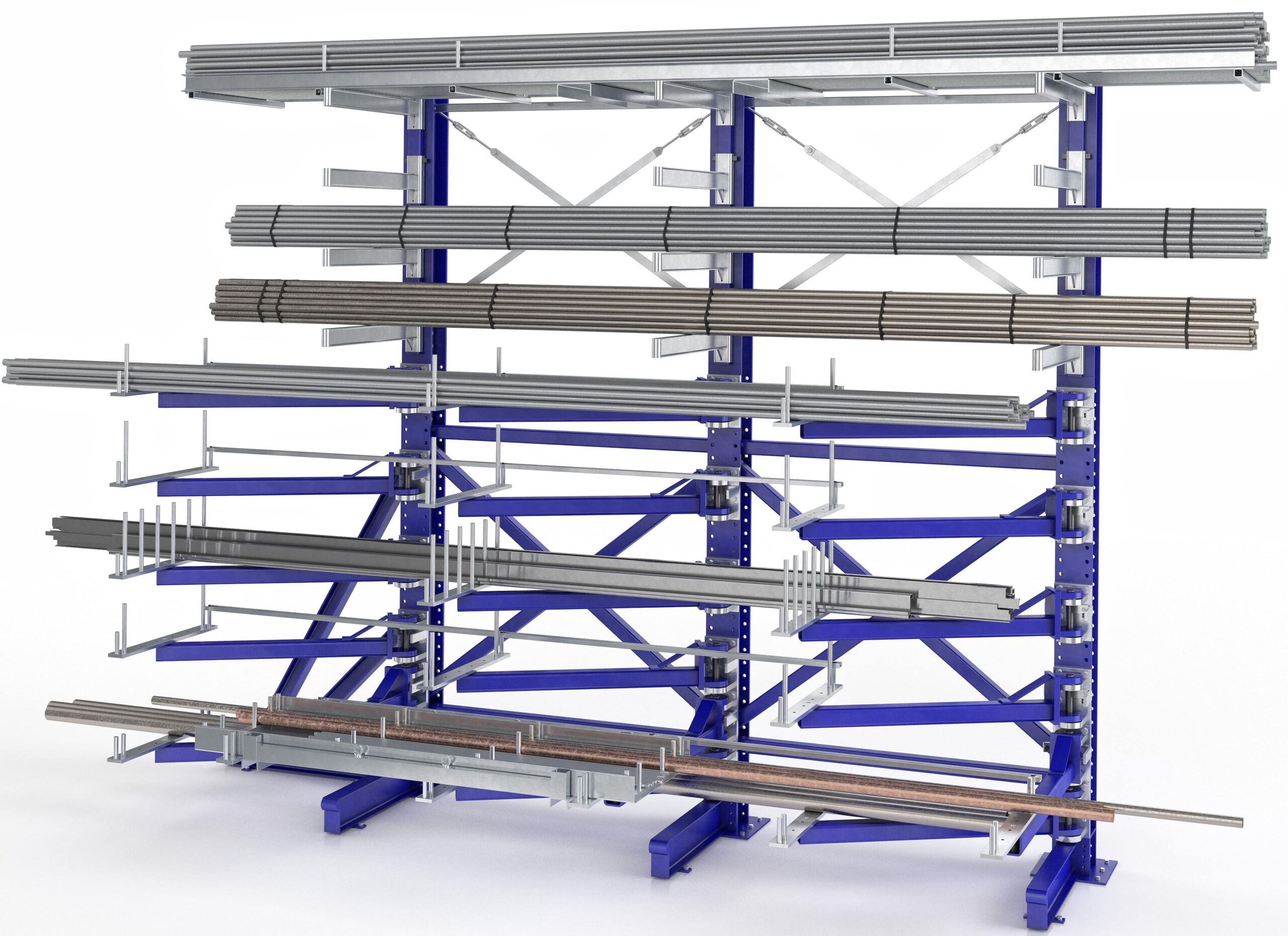

ArmStrong® swingout Heavy-duty long goods storage for crane operation

During the development of this patented Long goods handling storage system for the Crane operation has storemaster® has focused its particular attention on designing a long goods shelving system that is the ultimate in long goods storage technology in terms of work safety, accident prevention, handling, flexibility, resistance to faults and unlimited service life, and which is characterised by numerous unique features.

  • Ergonomic operation without bending and stretching from a standing position
  • without additional operating elements (crank, telescopic lever, etc.)
  • Effortless swivelling in and out in 5-10 seconds
  • Safe to operate in accordance with UVV: always one hand on the suspended load
  • Swivelled-out storage levels in the aisle area remain under supervision

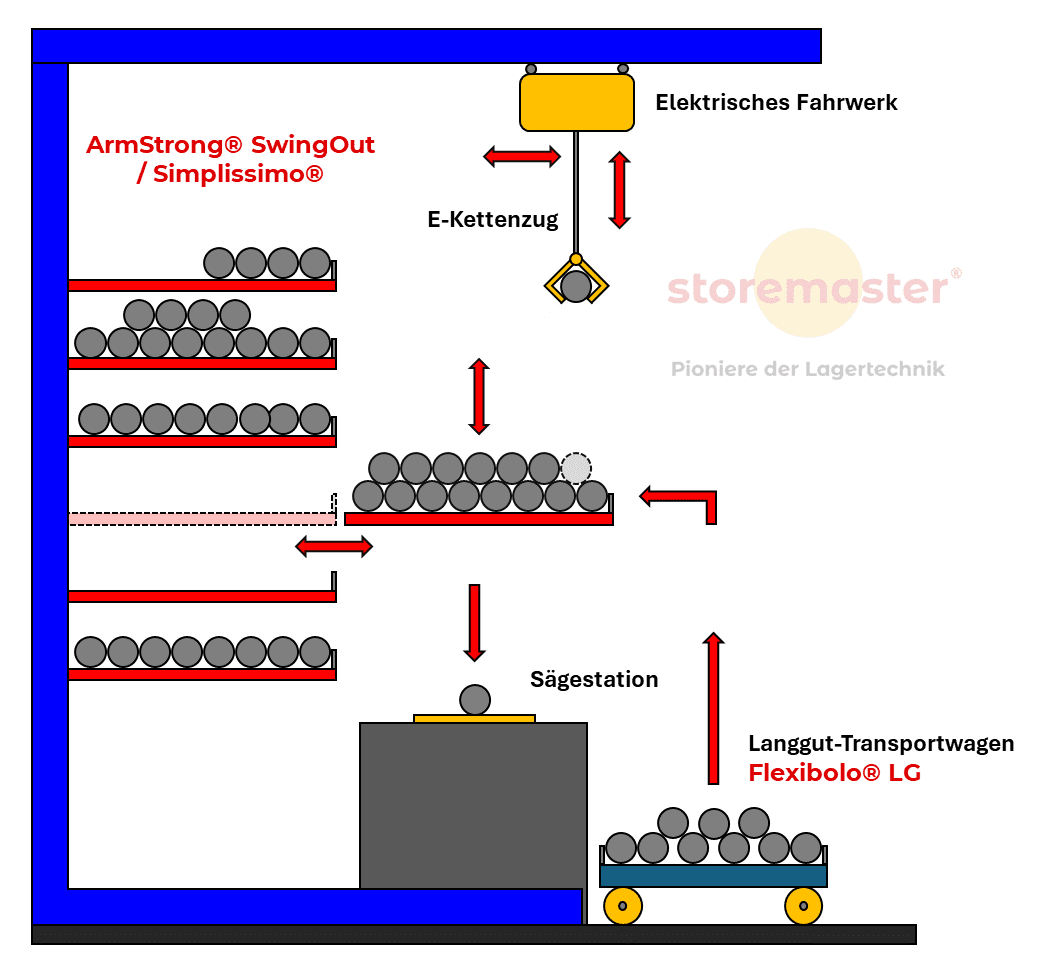

  • Swivelling in and out takes place during storage and retrieval (no double paths)
  • No additional operating aisle required
  • Robust design resistant to operational forklift impacts
  • Wear-free continuous function (20-year guarantee)
  • Suitable for outdoor use
  • Fail-safe with unlimited service life
  • Flexible shelf height and depth adjustability in 75 mm increments
  • Height extension through additional, plug-in storage levels that can be operated by forklift truck

The small differenceThe finite element software-supported and empirically sophisticated engineering used in the development of this long goods swivel arm racking system for crane handling is the guarantee of smooth manual operation with a 20-year functional guarantee.

The permanently changing static-dynamic flow of force acting on the swivel arm joint due to the rotary movement requires a special tuning of a particularly suitable rolling bearing combination. For a Permanently reliable function requires stable fixing of the cardan shaft when absorbing radial and axial forces simultaneously, as well as minimal rolling friction; this is provided by high-quality, permanently lubricated, double-row shafts with high load ratings designed for the heaviest loads. Spherical roller bearingwhich are suitable for successfully compensating for misalignments due to their angle adjustability.

The seemingly oversized, heavy highly stable The stud frame prevents the devastating effect of an otherwise later Misalignment The precision swivel arms are the ultimate prerequisite for successfully demonstrating their desired perfection for an unlimited period of time.

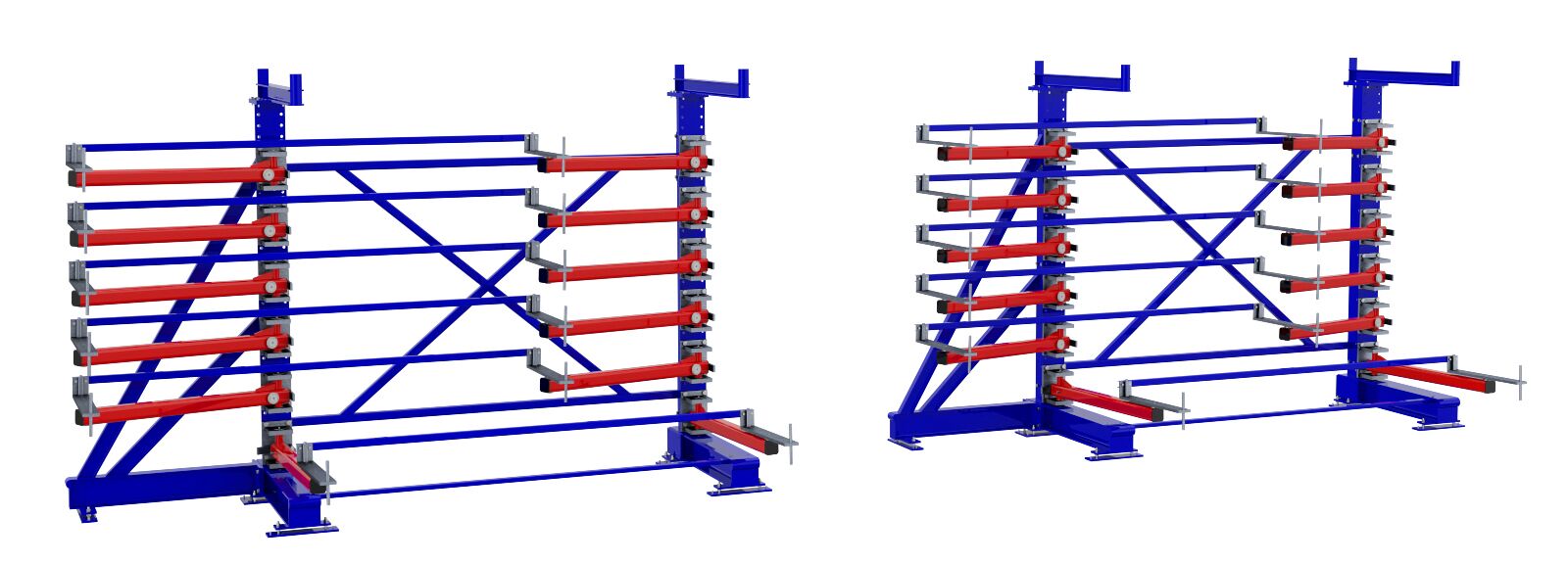

The wide range of accessories, as well as the possible combination of swivelling and fixed cantilever arms within one system, characterise the high flexibility of this system. It can even be installed without ground anchors on interlocking stone, soft asphalt, underfloor heating, etc.

The swivel arms are automatically locked against automatic or unintentional swivelling in and out. The deliberate, simultaneous swivelling out of several storage levels represents an incorrect operation that is contrary to practice. However, the stability of the system is guaranteed even if it is set up in accordance with regulations.

This quality product from the company storemaster® is unrivalled on the world market and is therefore the special pride of its creators.

Accessories included:

  • storeboy® Rolling step
  • Telescopic grab hook

Accessories optional:



  • Platform ladder
  • Craneable long goods stacking cassettes
