CoilStore® vertical
Coil storage for forklift mandrel handling
Storage system for sensitive coil surfaces
Patent protection
DBGM 20 2017 100 112
from 3.567,00€
excl. VAT
Delivery time: 10-12 weeks

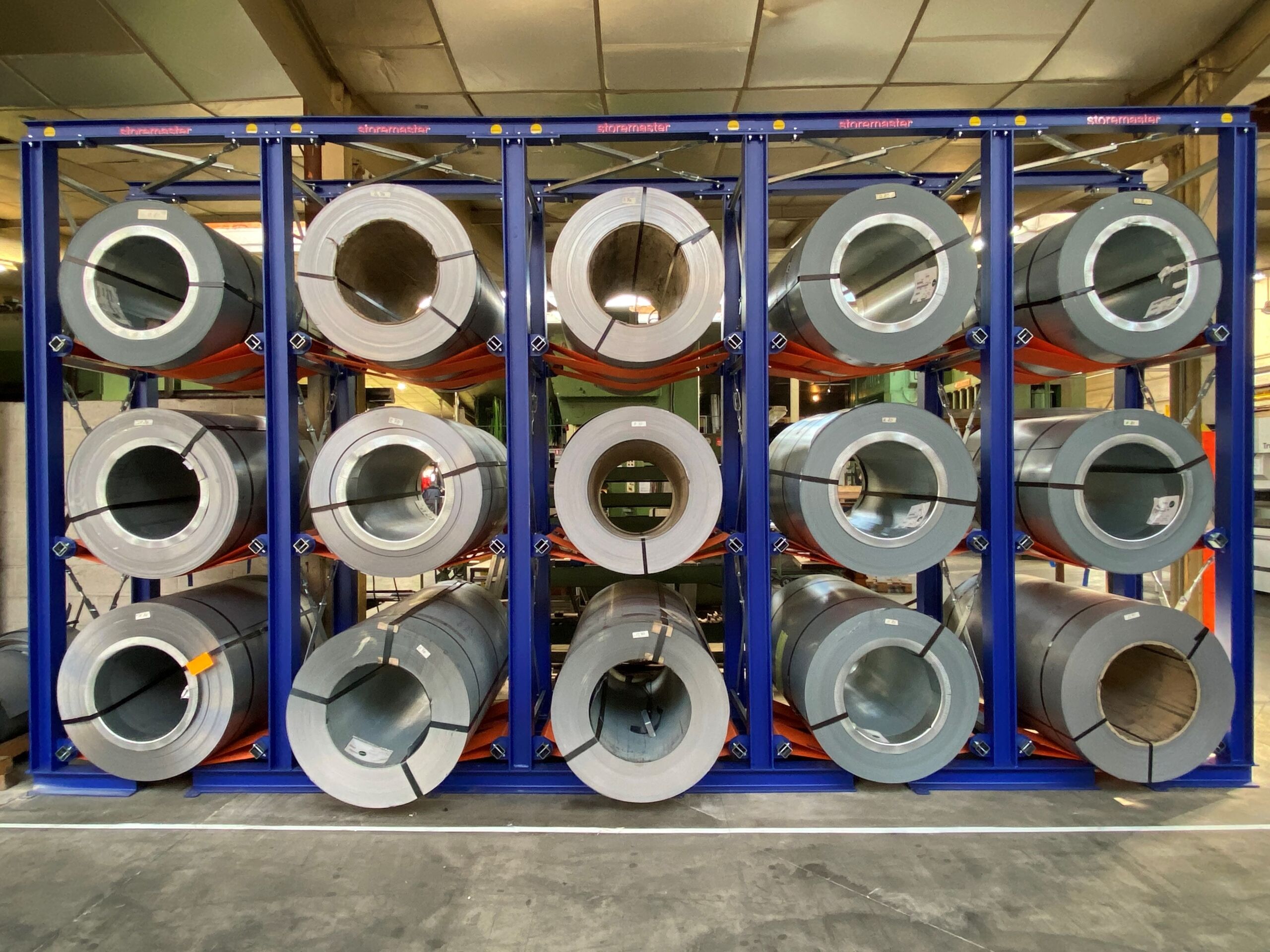

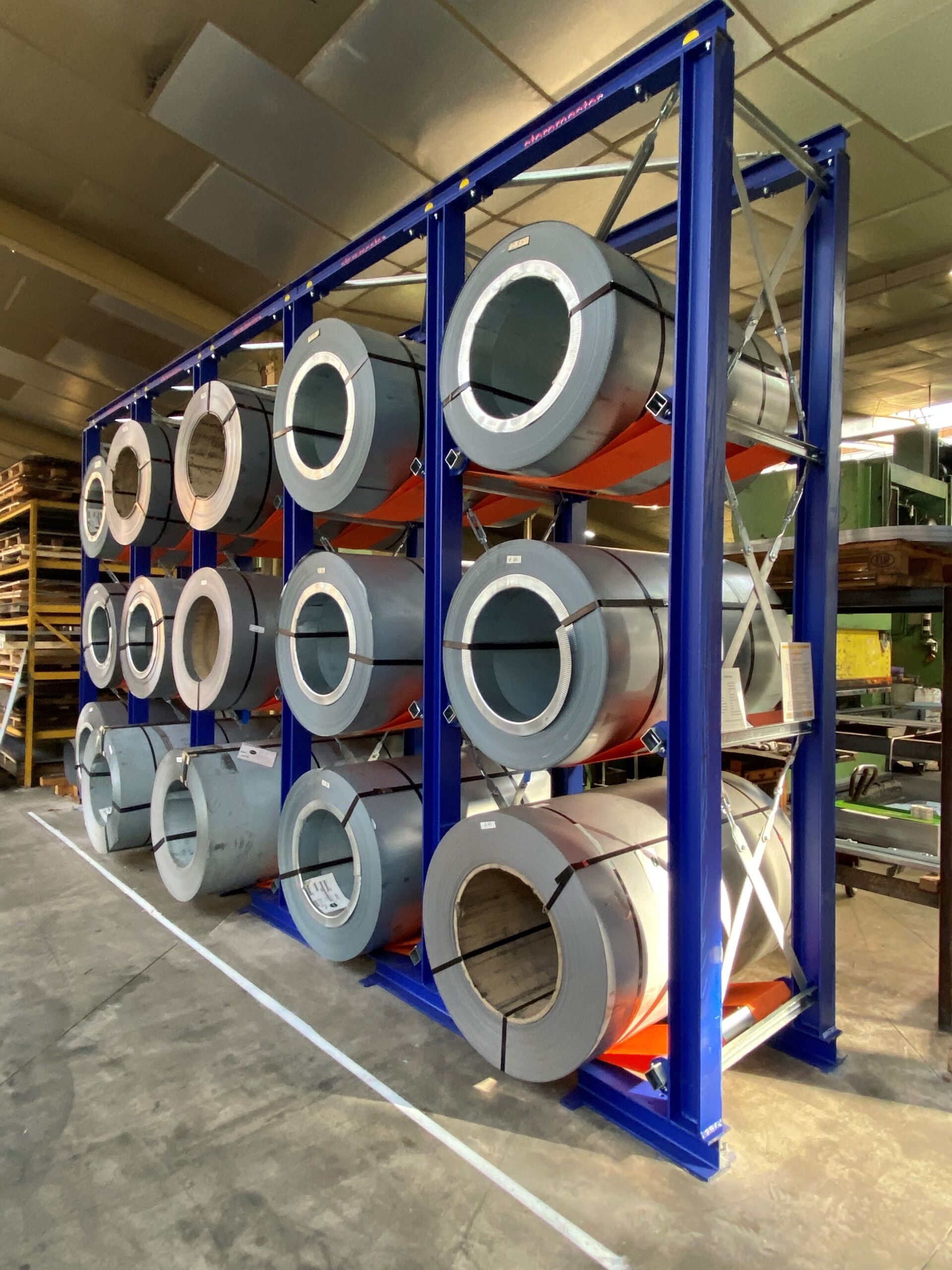

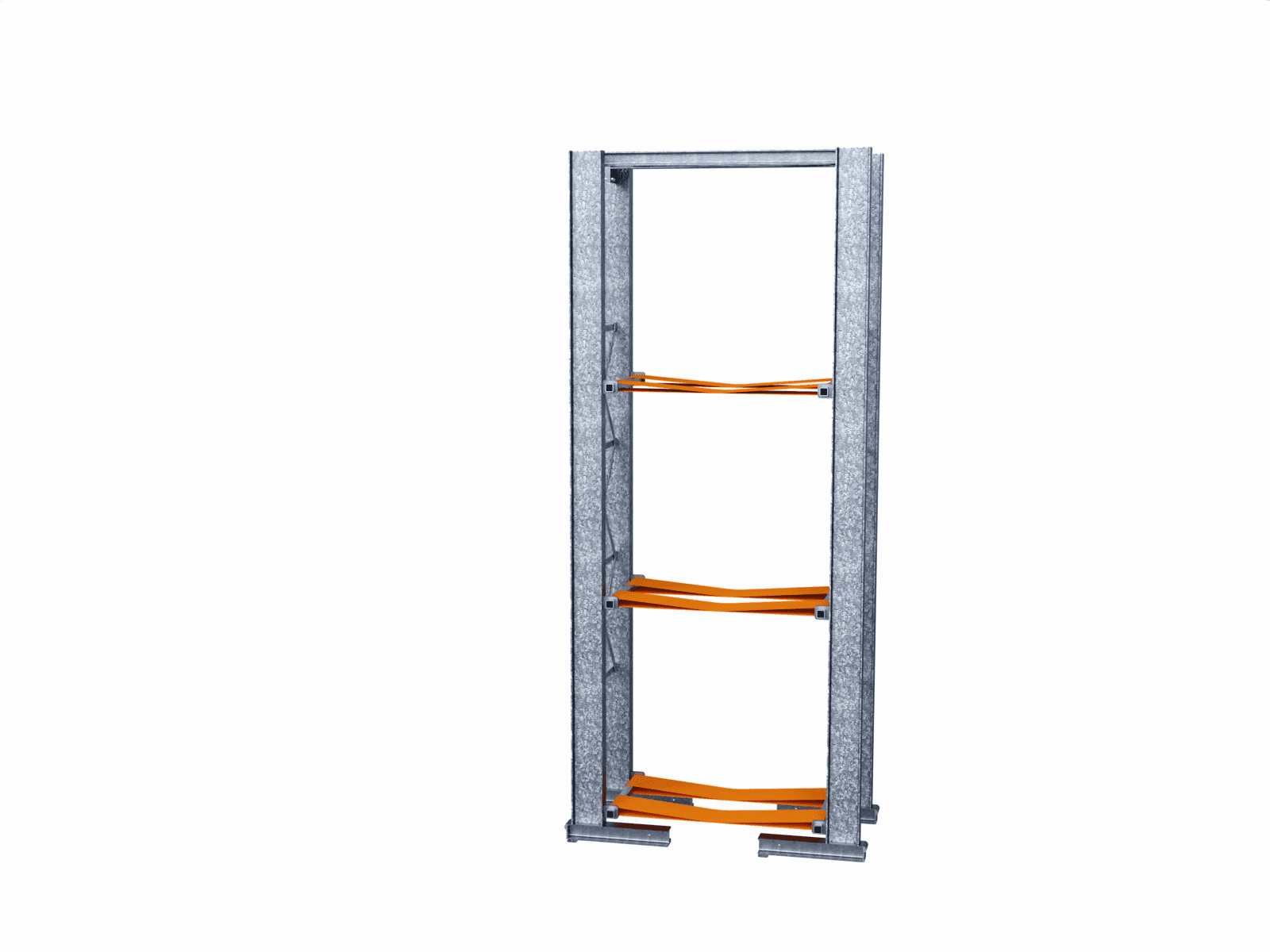

Coil storage by forklift mandrel takes place in special, high load-bearing, age-resistant and permanently wear-resistant coil belts, which can be flexibly adapted to any coil diameter. Installation as a single tower or in a row of towers. Standard: 3 coil storage locations per tower (special requests possible).
Delivery: free delivery within Germany, side panels pre-assembled

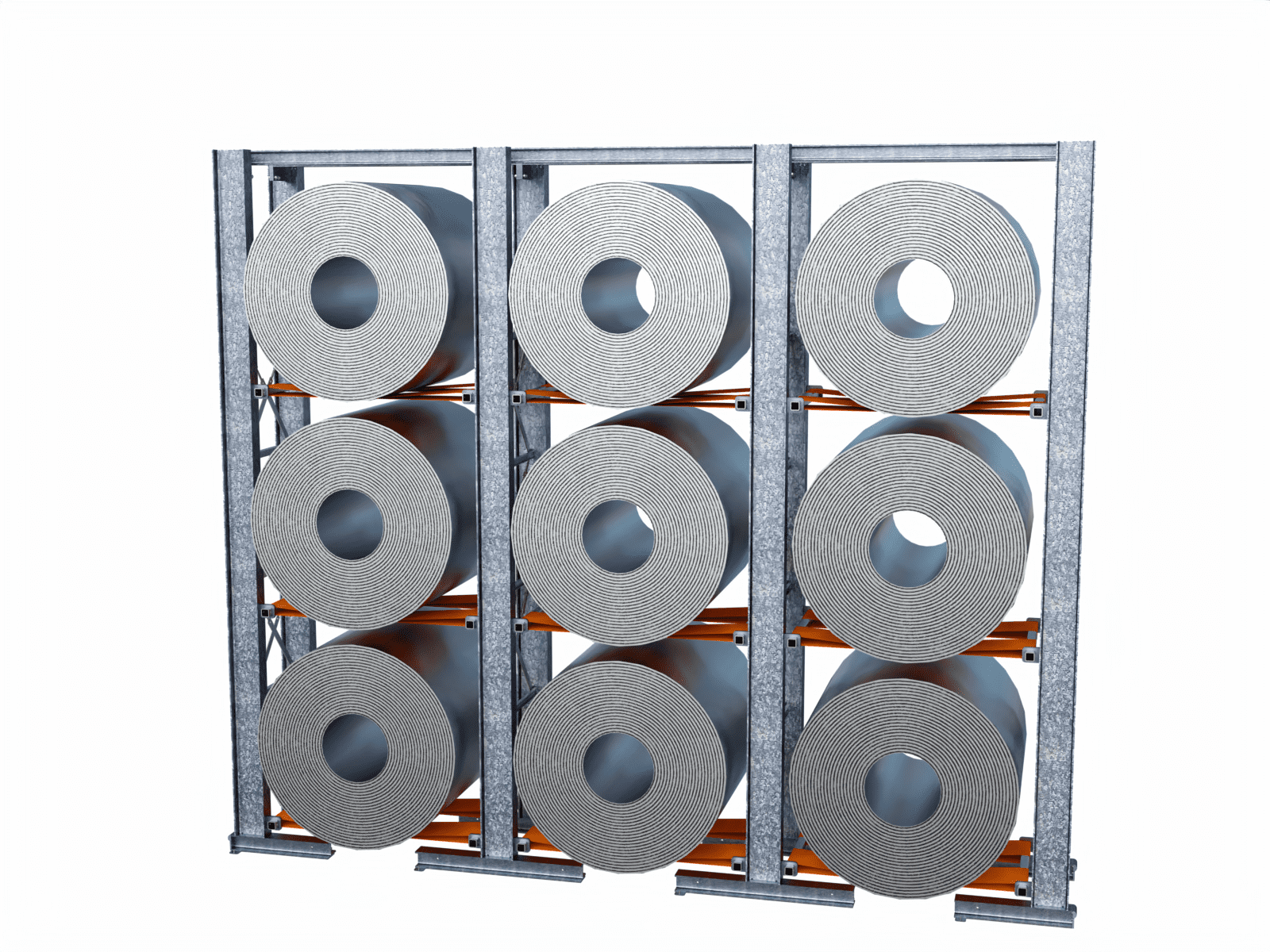

CoilStore® Vertical system
The coils are stored using forklift mandrels in special, high load-bearing, age-resistant and permanently wear-resistant coil belts that can be flexibly adapted to any coil diameter.
An innovative solution for your coil storage. Make optimum use of the height of your production hall or warehouse without compromising on work safety or user-friendly material handling. The patented load support offers you advantages in the daily handling of your cargo. Each coil is stored on two heavy-duty load-bearing belts to protect the surface. This creates an optimum surface load and avoids pressure points. Thanks to the flexibility of the belts, the coil is stored in a form-fitting manner for every diameter. The welded upright-foot beam construction ensures optimum load distribution on the floor. As a result, bay loads of up to 150 tonnes can be achieved. Thanks to the open rack fronts, your stored goods are accessible from both sides.
Advantages at a glance
- Removal of the coil load evenly distributed over a wide area, resulting in gentle coating pressure-avoiding storage
- Pressure marks, surface damage and flattening excluded
- High storage density, as without shelf supports, insert frames and wooden pallets
- Universal concept for coils up to 20 tonnes and 2,000 mm belt width
- Shelf dimensions can be customised as required
- Operation by forklift truck and carrying mandrel
- Storage on 2 heavy duty belts
- Patented coil take-up load belts
- Flexibly adaptable to different coil diameters
Designs

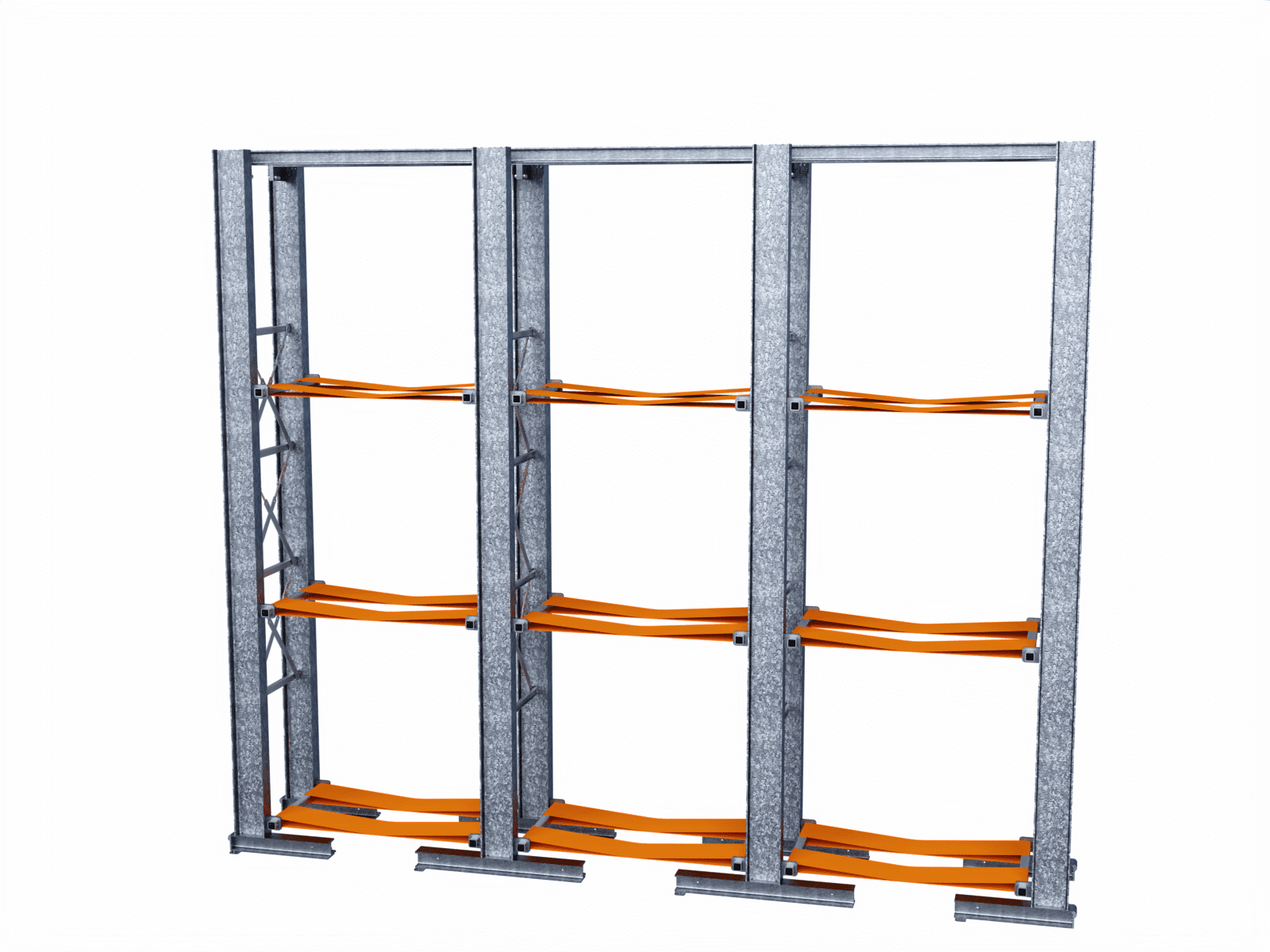

- Single tower or as a row of towers
- Almost all bandwidths and lengths
- Double-sided use possible
- Suitable for indoor and outdoor use
welded footbars:
- Permanently secure the vertical position of the shelving columns ⇒ Unlimited functional guarantee
- Replace field assemblies at risk of destruction with forklift forks
- Optimise load distribution over a wide area, even with low floor quality
Shelf dimensions
Field width: Coil diameter + 380 mm
Shelf row width: x*span width + 260 mm
Shelf depth: 1000 mm
Compartment height: Coil diameter + 100 mm
Shelf height: 3*coil diameter + 600 mm
Coil belts
Monitoring and testing of slings made of chemical fibres (100 % polyester) must be carried out at least once a year by an expert (qualified person in accordance with Section 10 BetrSichV). Depending on the conditions of use and operational circumstances, further inspections by an authorised person may be required in the meantime. Due to the stresses placed on slings, it is strongly recommended that shorter inspection intervals than once a year are specified. Slings made of man-made fibres must be observed for obvious defects during use. If defects are found that impair safety, the slings must be withdrawn from further use. Lifting slings made of man-made fibres that are contaminated or soiled with aggressive substances or other substances that could endanger their use must be carefully inspected and, if necessary, tested, e.g. by the manufacturer. Lifting slings made of man-made fibres have no expiry date if used as intended and regularly inspected. There is no specified maximum service life in accordance with DGUV 209-061.
We have compiled the following downloads for this product:
DVS-Zert - Conformity of the factory production control
DVS-Zert - Welding certificate
Bearing with one pick-up load securing device 20-2017-100-112
RAL-RG 614 Quality and testing regulations
Shelf Inspection Form
Welding certificate according to EN 1090-1 + EN 1090-2_certificate
Forklift truck guidelines-1 BGI 545
Accident prevention Storage technology
